S1 Series LED Light Amber | Single

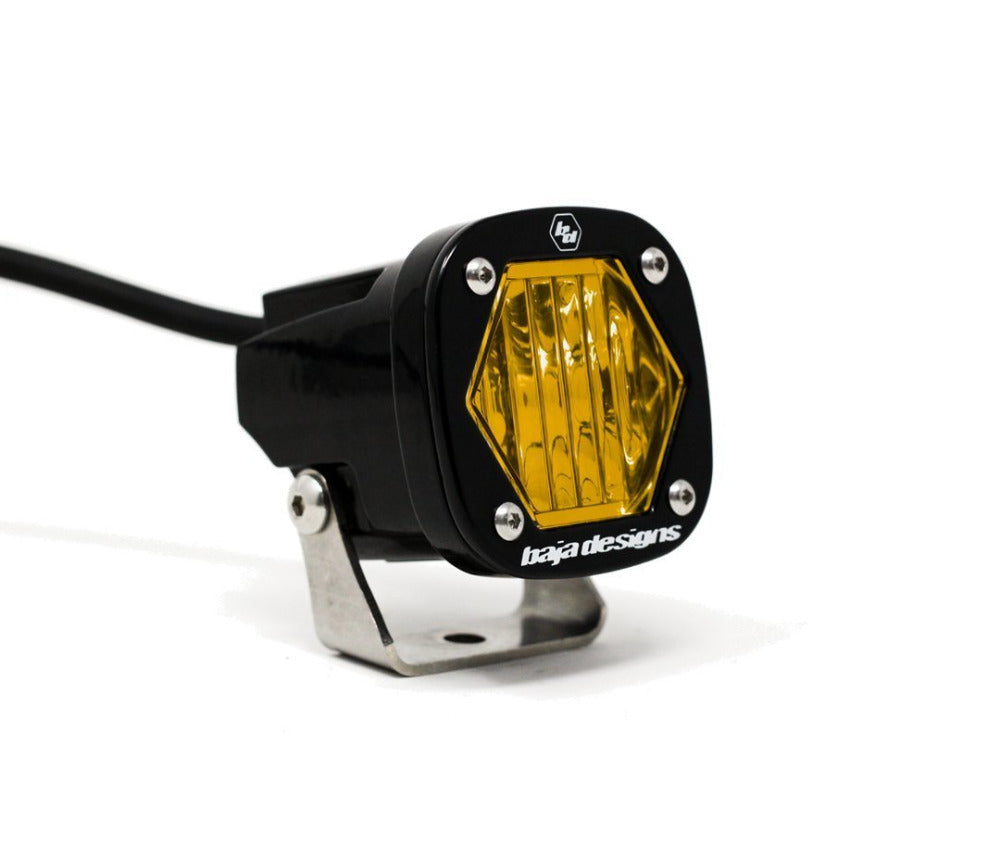

  • S1 Series LED Light Amber | Single Lighting Baja Designs Wide Cornering Display

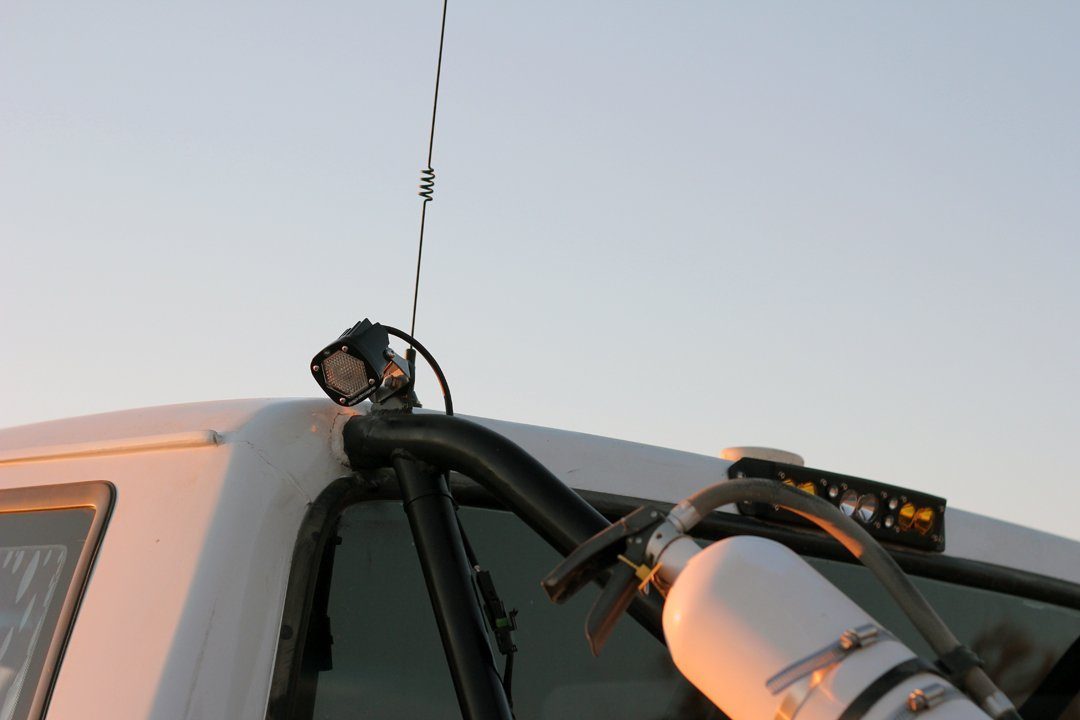

  • S1 Series LED Light Amber | Single Lighting Baja Designs Display on Vehicle

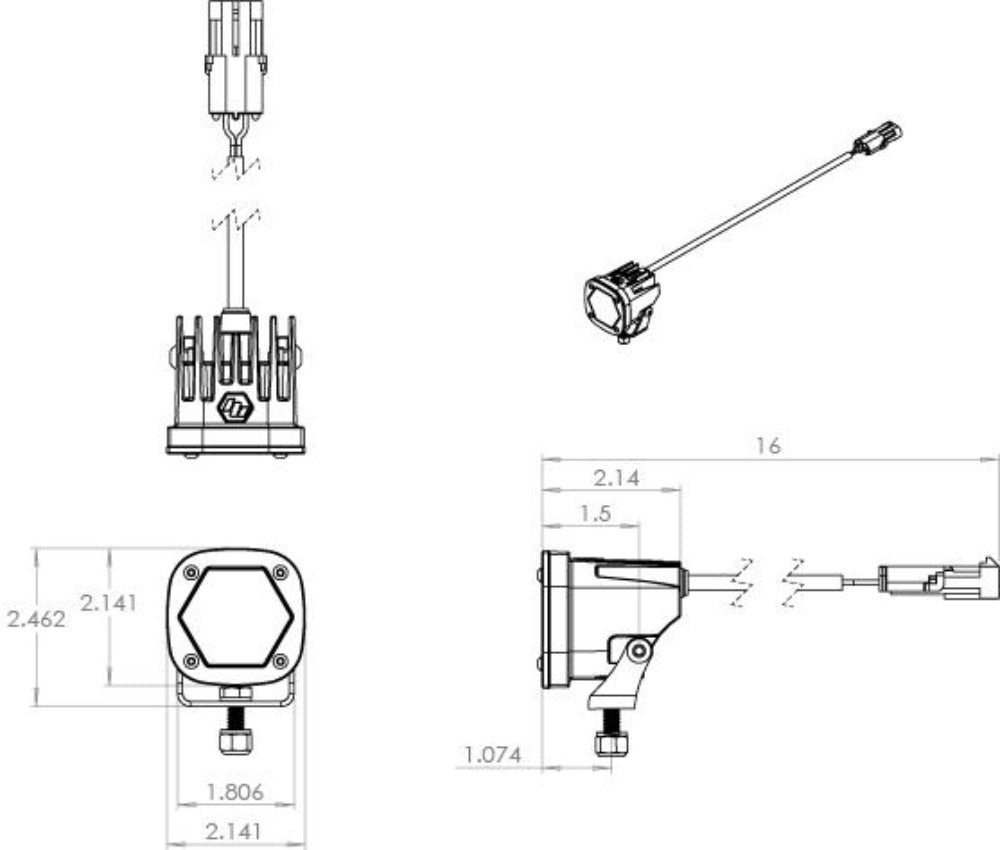

  • S1 Series LED Light Amber | Single Lighting Baja Designs Diagram of design
Beam Pattern
$122.95
$122.95
A SMALL LIGHT THAT PACKS A PUNCH:

Baja Designs introduces the compact yet powerful S1 LED Light, designed to deliver exceptional lighting performance in a small form factor. Perfect for a variety of applications, the S1 is a versatile choice whether you need driving illumination or campsite lighting.

Specifications:
  • Lumens: 2,375 using 1 LED
  • Wattage/Amps: 20W / 1.45A
  • Dimensions: 2.1" x 2.1" x 2.1"
  • Weight: 0.4 lbs
  • LED Life Expectancy: Approximately 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Hard Anodized & Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K Rating: Waterproof up to 9ft & Pressure Washable
  • IK10 Compliant: Mechanical Impact Testing
Package Includes:
  • 1 x S1 LED Light
  • Mounting Bracket
Beam Patterns:
  • Wide Cornering: Baja Designs' pioneering pattern for cornering, dust, and fog conditions. Provides a 42° flattened horizontal beam for exceptional comfort lighting. Ideal for Lighting Zones 1 & 2.
  • Spot: A focused 9° beam for long-distance illumination. Best used alongside additional Wide Driving and/or Driving/Combo beam lights for comprehensive trail visibility. Suitable for Lighting Zones 4 & 5.
  • Work/Scene: An excellent choice for work or scene lighting, this pattern delivers a smooth, broad circle of light extending approximately 40ft. Not recommended for driving purposes.



S1 Series LED Light Amber | Single

$122.95

COMPLETE SOLUTION

  • Auxiliary Lighting

  • Mounting

  • Power Management

Auxiliary Lighting

We stock industry-leading off-road lighting, including Baja Designs and other trusted brands — giving you serious visibility when it matters most. Whether you need fog, spot, or flood beams, we’ve got your lighting covered.

A-Pillar Light Mounts

Our vehicle-specific A-pillar mounts provide a clean, low-profile mounting solution for your auxiliary lights. Engineered for strength, precision fitment, and easy installation — no guesswork, no rattle, no BS.

Billet Battery Terminals

Wiring up your accessories shouldn't mean splicing wires and creating a mess under the hood. Our precision-machined billet battery terminals make it easy to cleanly and securely connect aftermarket accessories like lights, winches, and compressors — all in one place.
