a top choice for various lighting needs
Inspired by the iconic 8" La Paz HID, Baja Designs introduces the LP9 Pro, blending modern aesthetics with cutting-edge LED technology. This light boasts a powerful output and wide-angle visibility, making it a top choice for various lighting needs.

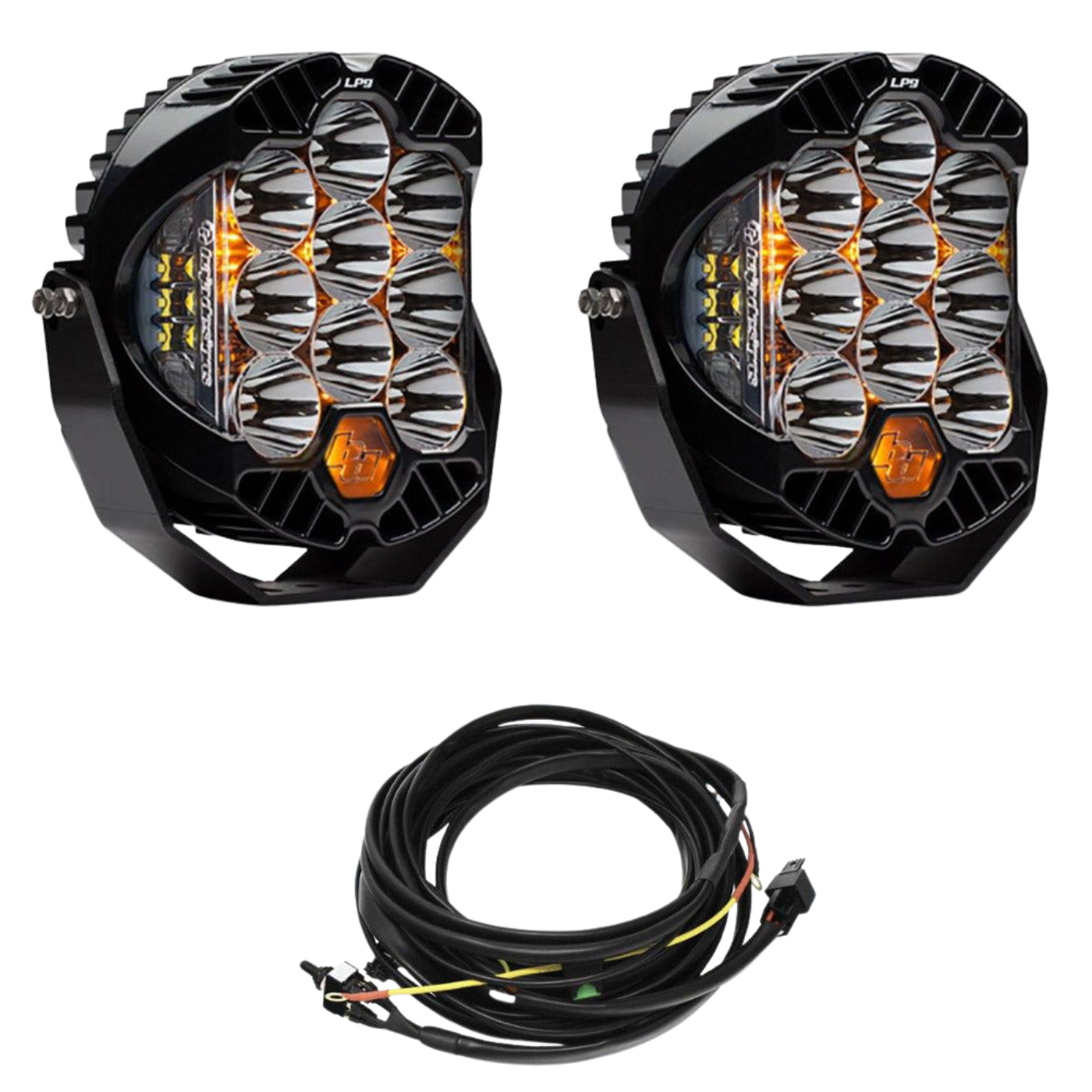

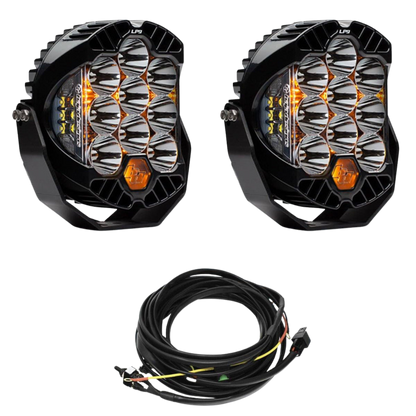

What's Included:
- 2 x Baja Designs LP9 Pro Lights
- Wiring Harness (640172)
Specifications:
- Forward Projecting Lumens: 11,025 (using 9 LEDs)
- Forward Projecting Wattage/Amps: 105W / 7.6A
- IPT Lumens: 2,280 (using 6 LEDs)
- IPT Wattage/Amps: 21W / 1.52A
- Backlight Wattage/Amps: 2.8W / 0.2A

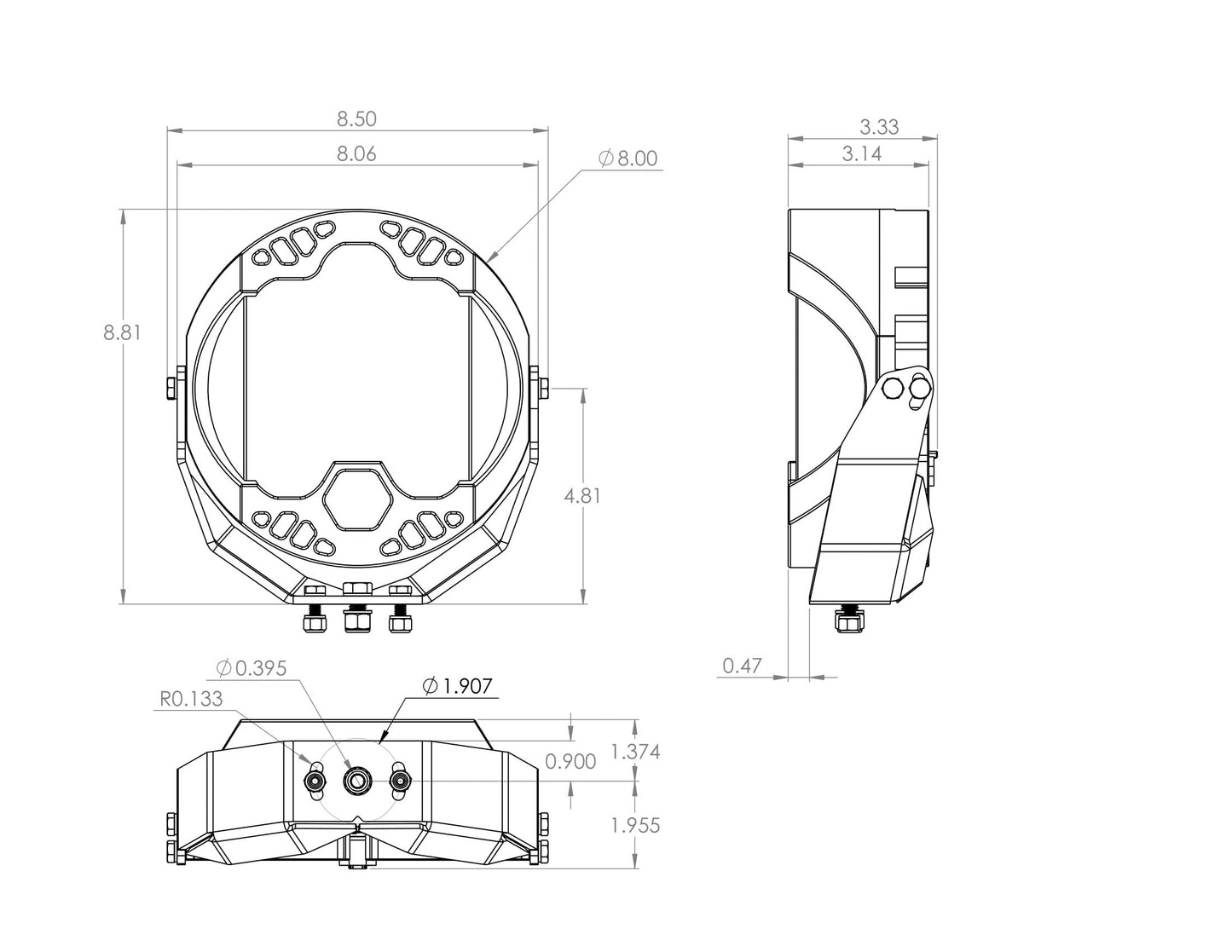

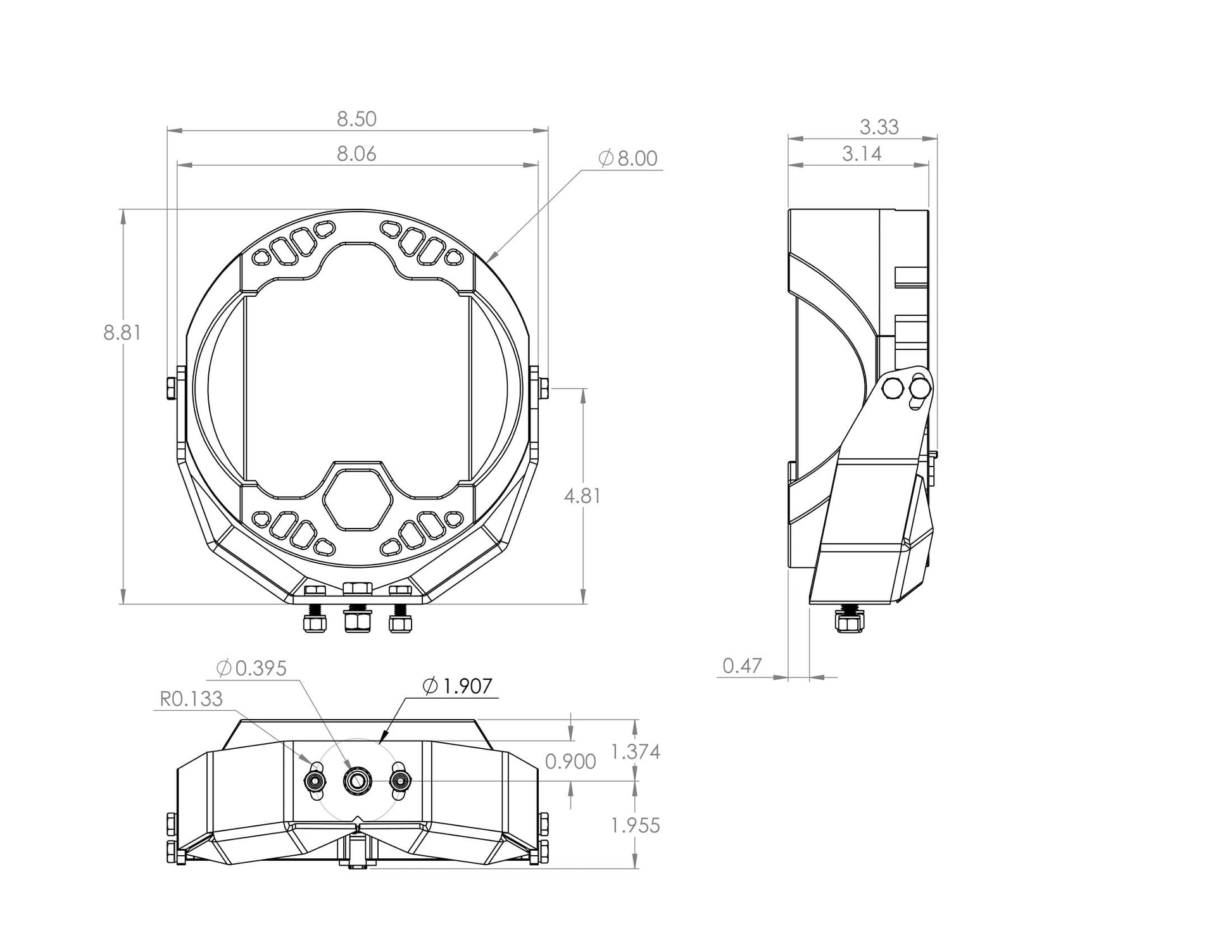

- Dimensions: 8" Diameter x 3.25" Depth
- LED Life Expectancy: Approximately 49,930 Hours
- Front Lens: Hardcoated Polycarbonate
- Housing: Hard Anodized Aluminum
- Bezel: Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K Rating: Waterproof up to 9ft & Pressure Washable
- IK10 Compliant: Mechanical Impact Testing
Beam Pattern:
- Driving/Combo: Offers maximum trail coverage with both Wide Driving (42°) and Spot (6°) optics, ensuring a balanced light spread for near and distant illumination.
- High Speed Spot: Features a focused, narrow 6° beam for long-range visibility, best used in conjunction with additional Wide Driving and/or Driving/Combo lights.
Product Options:

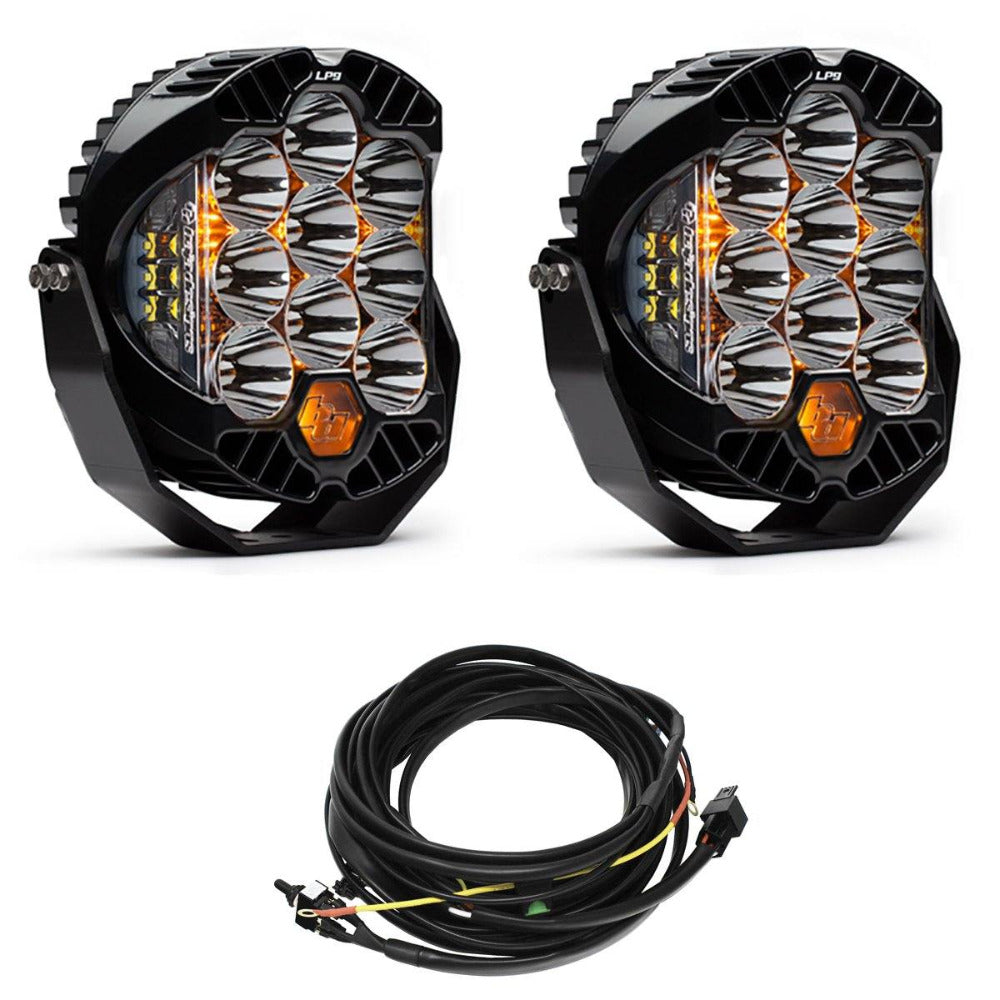

- Part Number: 320001, Clear Lens, Spot

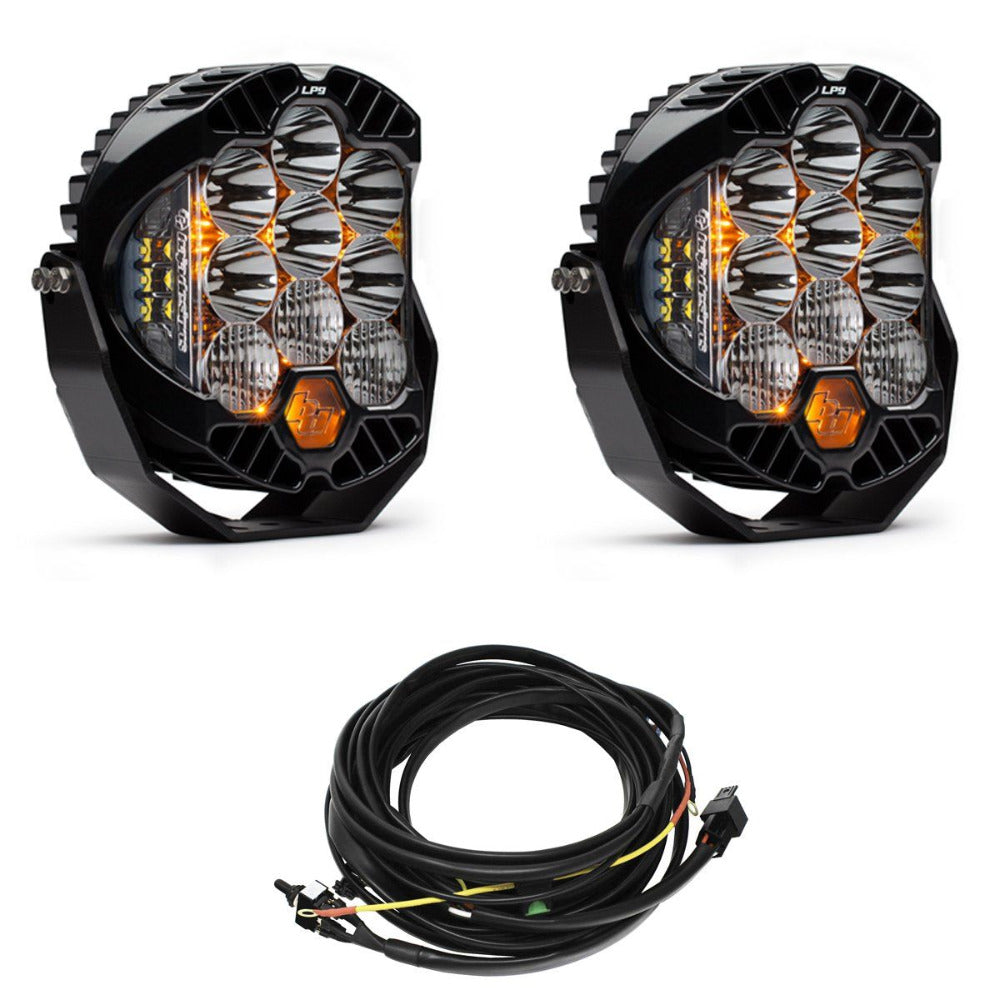

- Part Number: 320003, Clear Lens, Driving/Combo

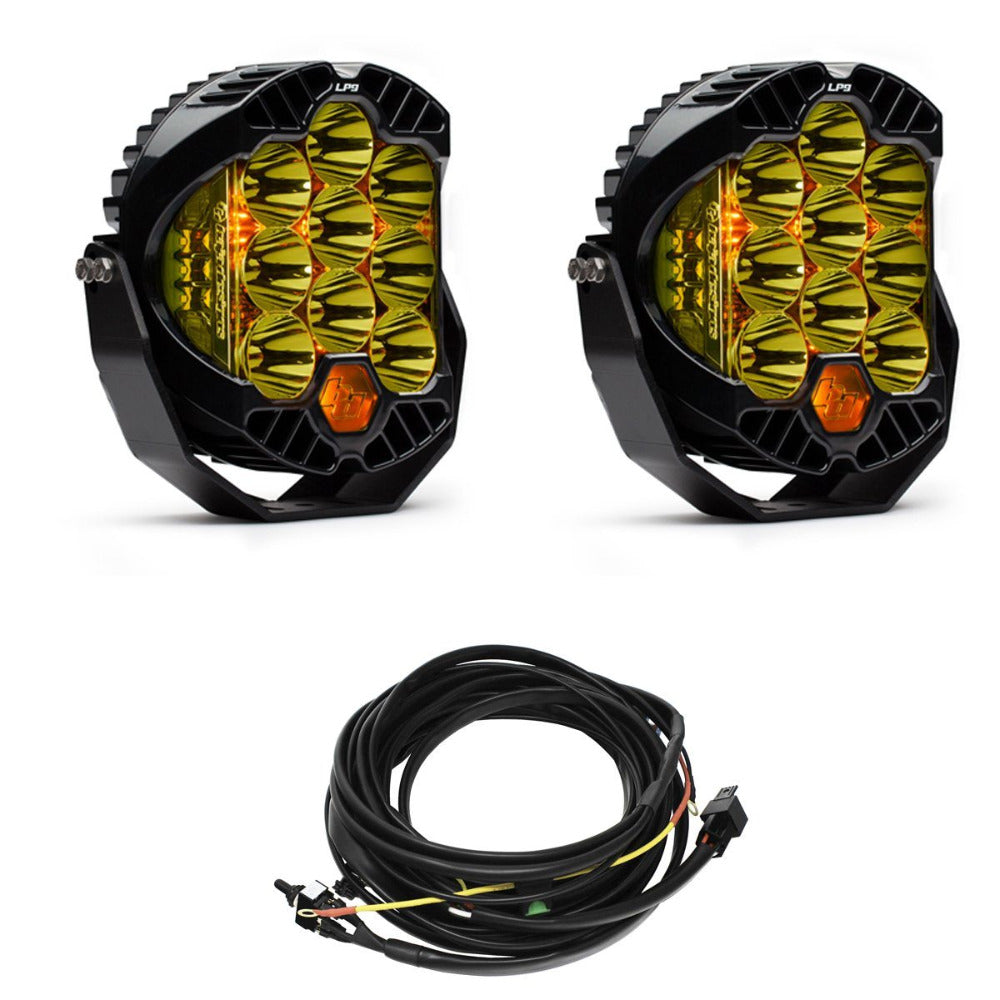

- Part Number: 320011, Amber Lens, Spot

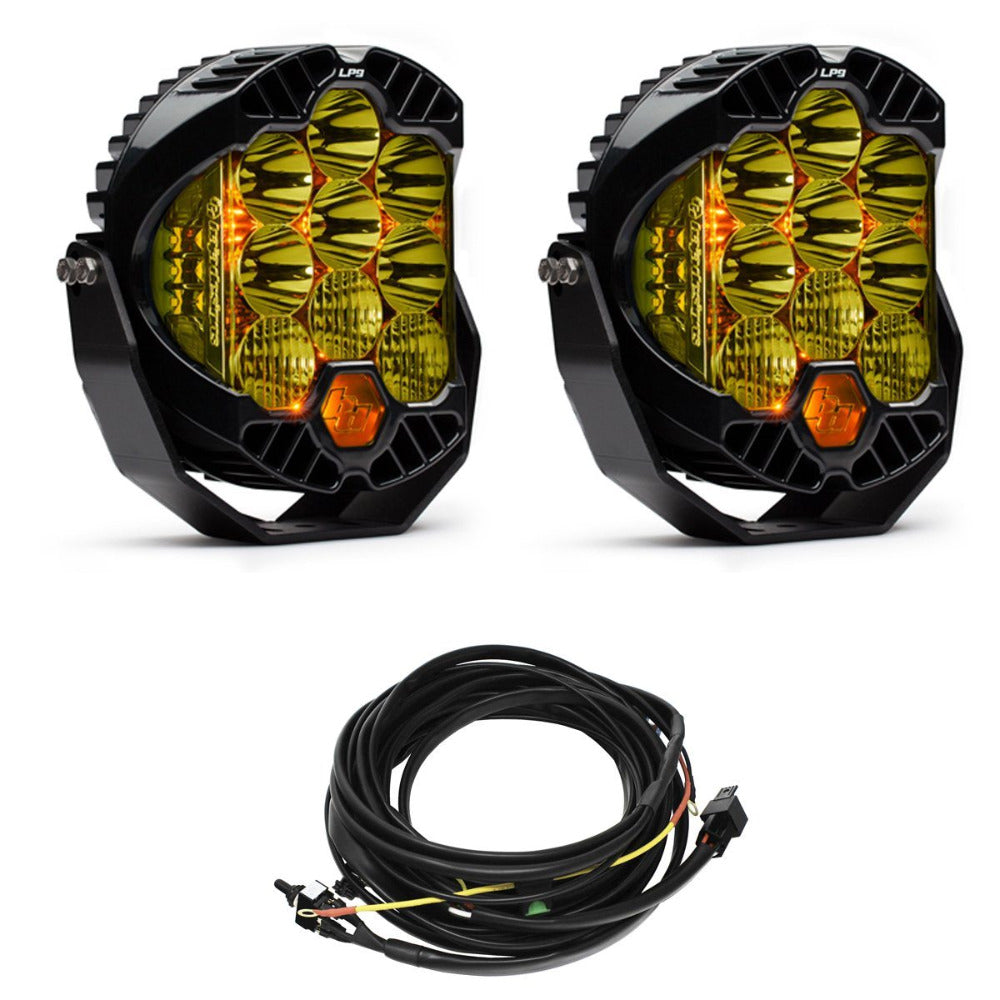

- Part Number: 320013, Amber Lens, Driving/Combo
The LP9/LP6 Pro Harness (640172) Includes:
- Wiring harness with plug-and-play Deutsch connectors
- Built-in splitter for two LP9 or LP6 lights
- Large automotive-style ring terminals
- 3-position, 30amp DC rated, DPDT switch for independent high/low beam operation
- Extra wire lead with splice connector for amber DRL
- 20A/40A relay & 30 amp inline fuse
- 12-foot length from battery to instrument cluster
- 15-foot length from instrument cluster to light mounting location
