CUSTOMIZABLE TO YOUR NEEDS:

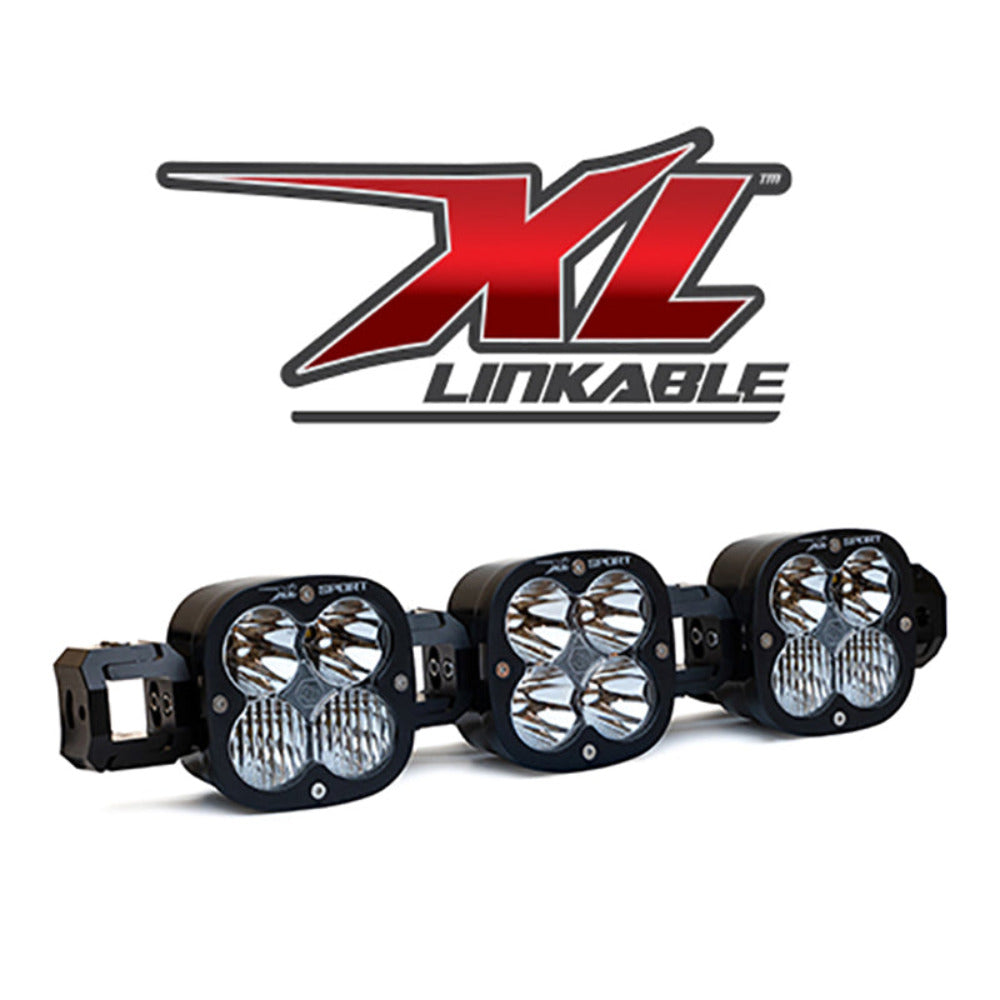

Full adjustment. Total Performance. Baja Designs' XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes 3-8 XL Sports, Links, and Rock Guards.
This system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment allows for straight or arced configurations to perfectly match the lines of your vehicle.

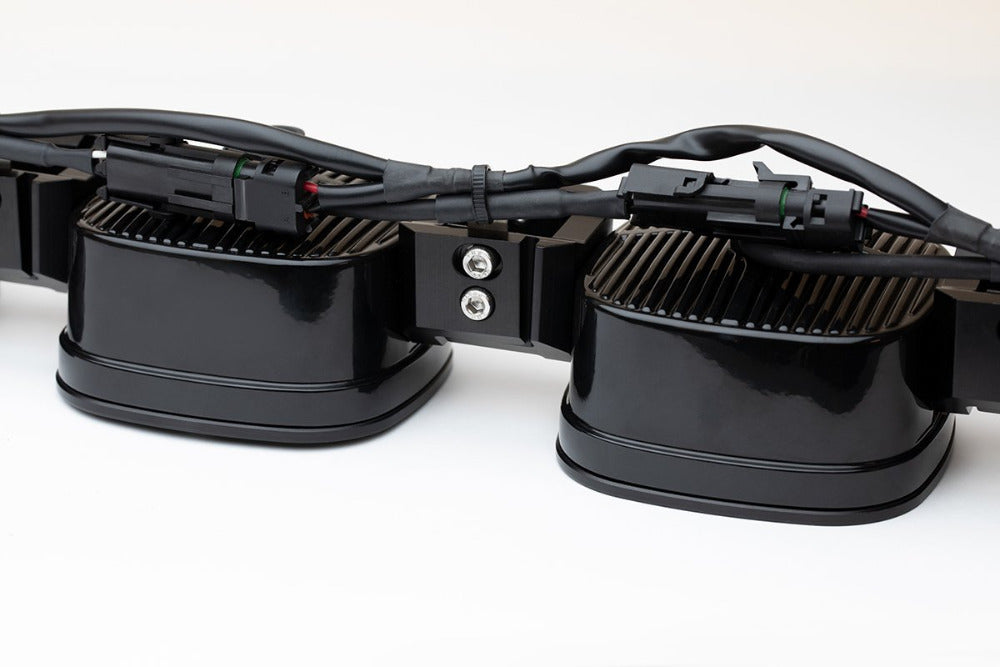

The wiring comes fully crimped and trimmed, allowing for easy install and the ability to add links down the road. If you're looking to have a lighting system that performs as well as it looks, this is the auxiliary light kit for you!
NOTE: XL Linkable mounting brackets not included. Applicable brackets will be (748000).
SPECS:
| Link Length (# of lights) |
Lumens |
Wattage/Amps |
Lights Included |

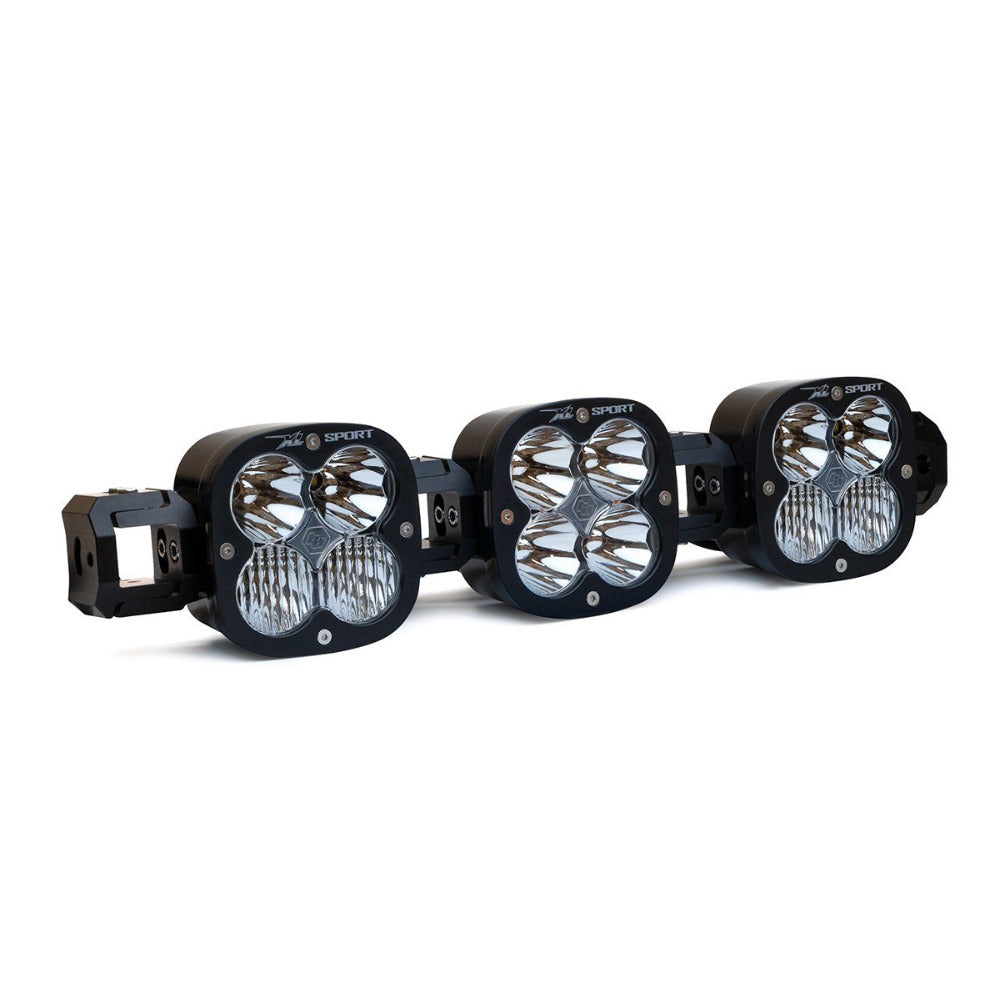

| 3 Links
(740001)
|
9,450 Utilizing 12 LEDs |
78W/6A |
x1 XL Sport Spot LED Light
x2 XL Sport Driving/Combo LED Light |

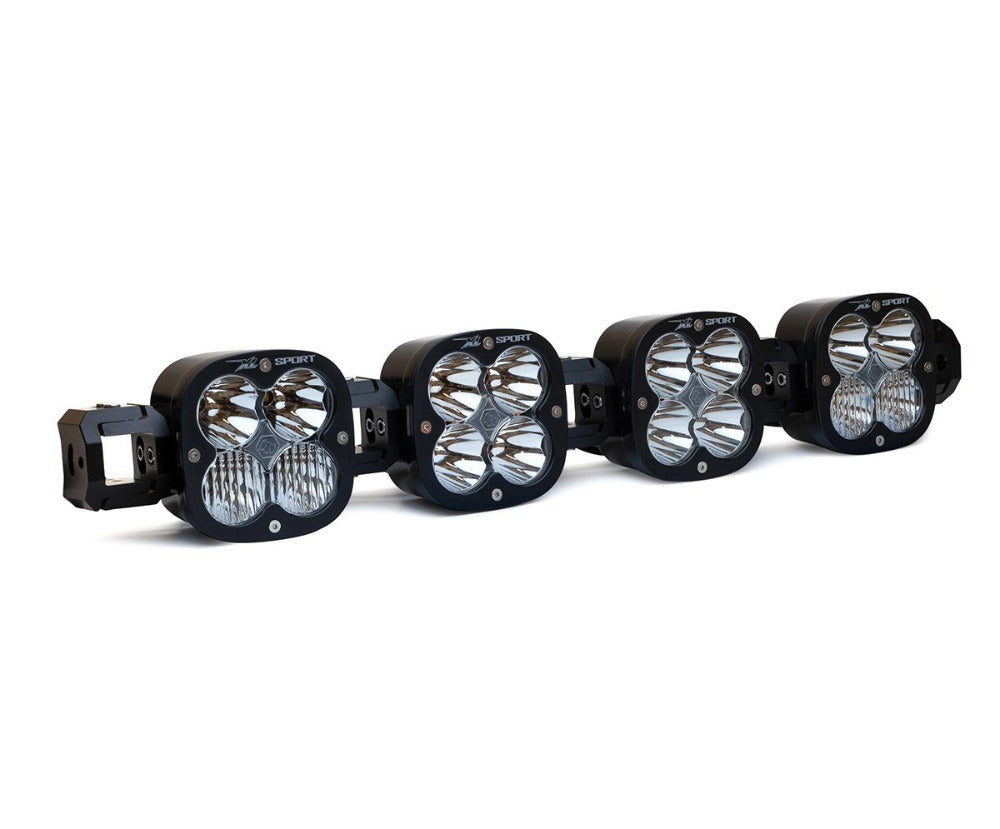

| 4 Links
(740002)
|
12,600 Utilizing 16 LEDs |
104W / 8A |
x2 XL Sport Spot LED Light
x2 XL Sport Driving/Combo LED Light |

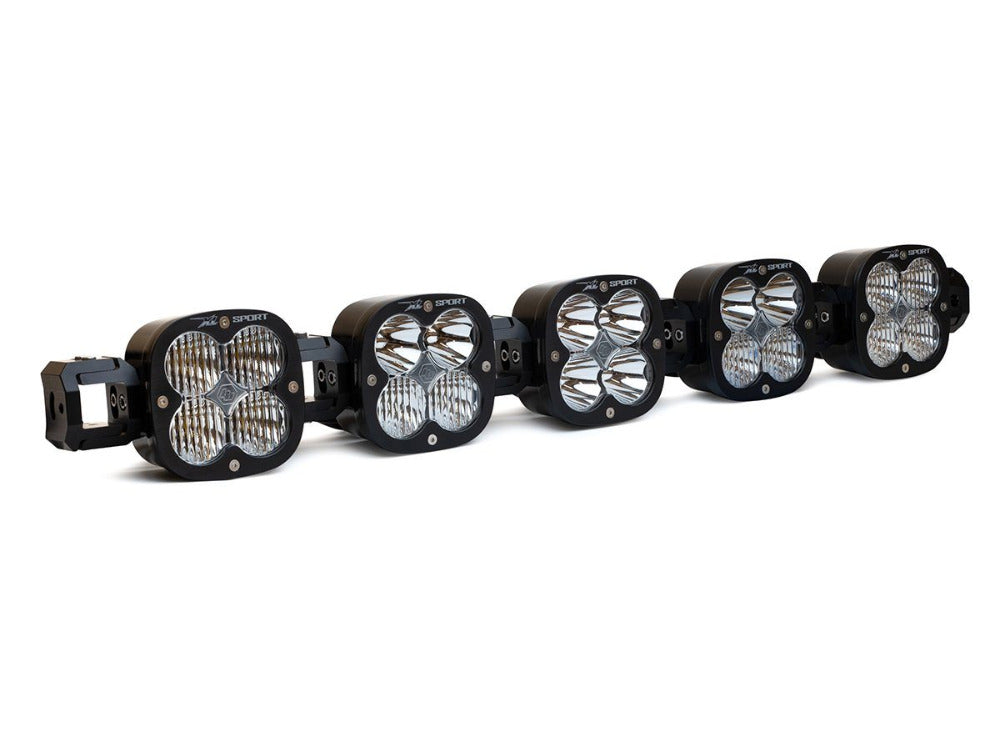

| 5 Links
(740003)
|
15,750 Utilizing 20 LEDs |
130W / 10A |
x1 XL Sport Spot LED Light
x2 XL Sport Driving/Combo LED Light
x2 XL Sport Wide Cornering LED Light |
| 6 Links
(740004)
|
18,900 Utilizing 24 LEDs |
156W / 12A |
x2 XL Sport Spot LED Light
x2 XL Sport Driving/Combo LED Light
x2 XL Sport Wide Cornering LED Light |

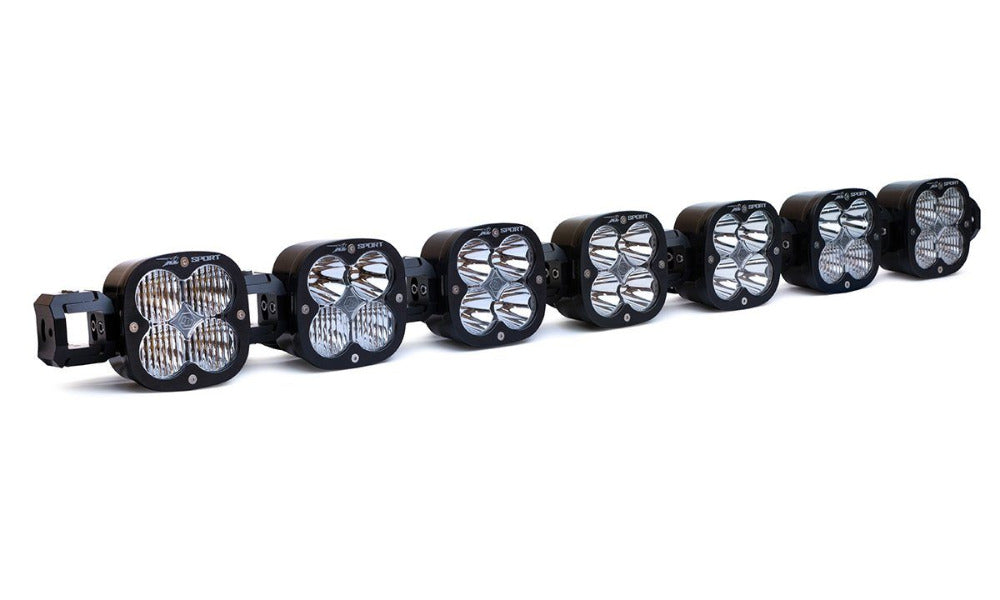

| 7 Links
(740005)
|
22,050 Utilizing 28 LEDs |
182W / 14A |
x3 XL Sport Spot LED Light
x2 XL Sport Driving/Combo LED Light
x2 XL Sport Wide Cornering LED Light |

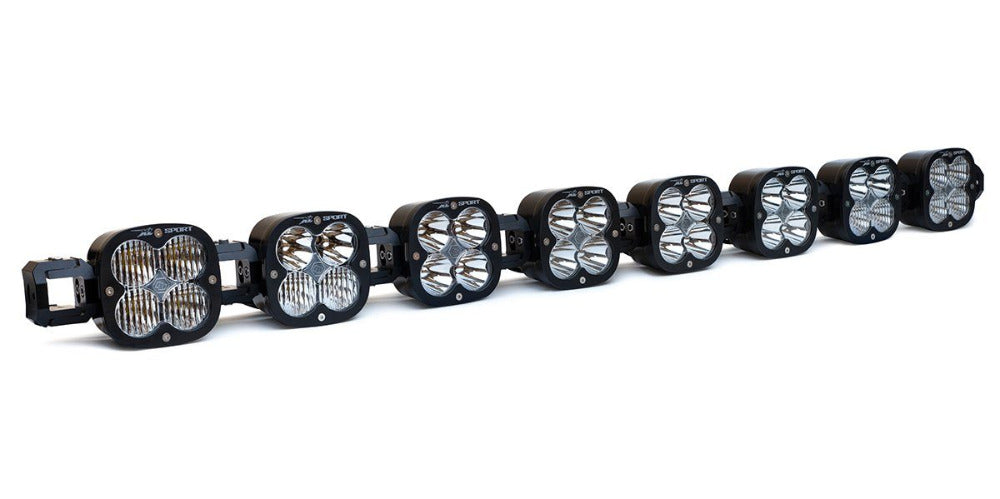

| 8 Links
(740006)
|
25,200 Utilizing 32 LEDs |
208W / 16A |
x4 XL Sport Spot LED Light
x2 XL Sport Driving/Combo LED Light
x2 XL Sport Wide Cornering LED Light |
BEAM PATTERNS:
-
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
-
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
-
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
