COMPACT LP WITH ALL THE POWER:
Baja Designs presents the LP4 LED Light, the most compact model in the LP series, yet it retains all the power and features of its larger counterparts. The LP4 delivers an impressive 8,750 lumens across a 200° spread of usable LED light, combining 7,050 lumens of forward projection with 1,700 lumens of peripheral illumination thanks to the patented Integrated Peripheral Technology (IPT).
Advanced cooling is ensured by Baja Designs' exclusive Direct Ducted Cooling (DDC) technology. This innovative design allows air flow through the front of the housing and over the rear heat sinks, significantly enhancing cooling efficiency and light performance.

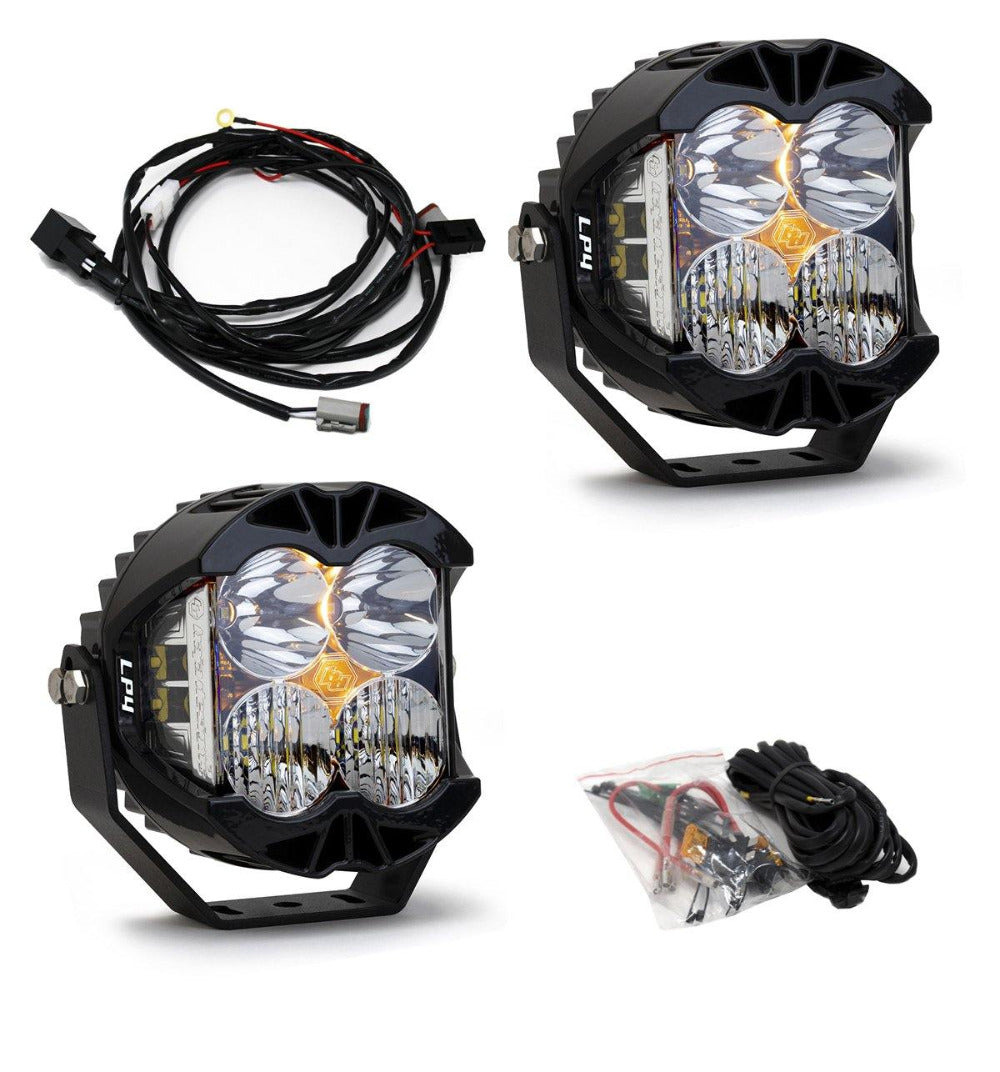

Included in Your Purchase:
- 2 LP4 LED Lights (Clear Lens, Driving/Combo beam pattern)
- 1 Wiring Harness
Specifications:
- Forward Projecting Lumens: 7,050 (utilizing 4 LEDs)
- Forward Projecting Wattage/Amps: 60W / 6.5A
- IPT Lumens: 1,700 (utilizing 4 LEDs)
- IPT Wattage/Amps: 15W / 1.0A
- Backlight Wattage/Amps: 4.83W / 0.35A
- Dimensions: 5.1" H x 5.1" W x 3.2" D
- LED Life Expectancy: Approximately 49,930 Hours
- Front Lens: Hardcoated Polycarbonate
- Housing: Hard Anodized Machined Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket: Stainless Steel
- Compliance: Exceeds MIL-STD810G (Mil-Spec Testing)
- Overvoltage Protection: Built-in
- Waterproof Rating: IP69K (Submersible to 9ft & Pressure Washable)
- Impact Resistance: IK10 Compliant
Beam Patterns:
-
Driving/Combo: Offers maximal trail coverage in a single light. Equipped with both Wide Driving (42°) and Spot (6°) optics for a versatile blend of near-field and distance illumination.
