Baja Designs 30" OnX6+ LED Light Bar

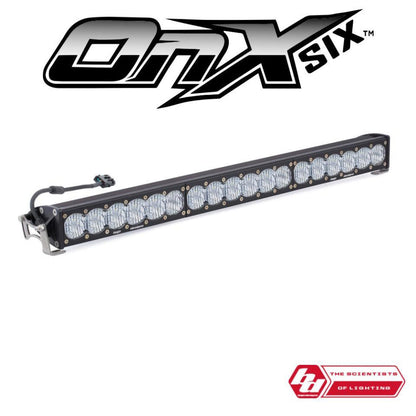

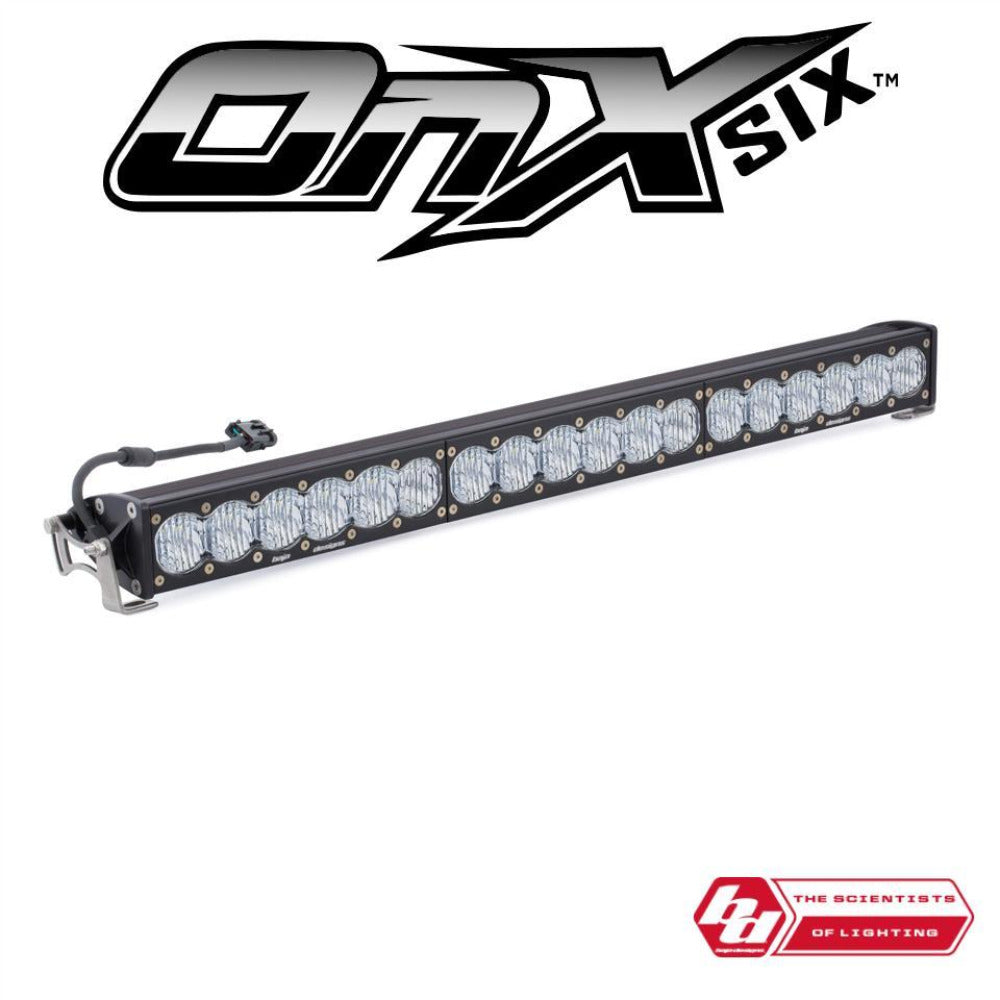

  • 30" OnX6+ LED Light Bar Lighting Baja Designs Wide Driving Display

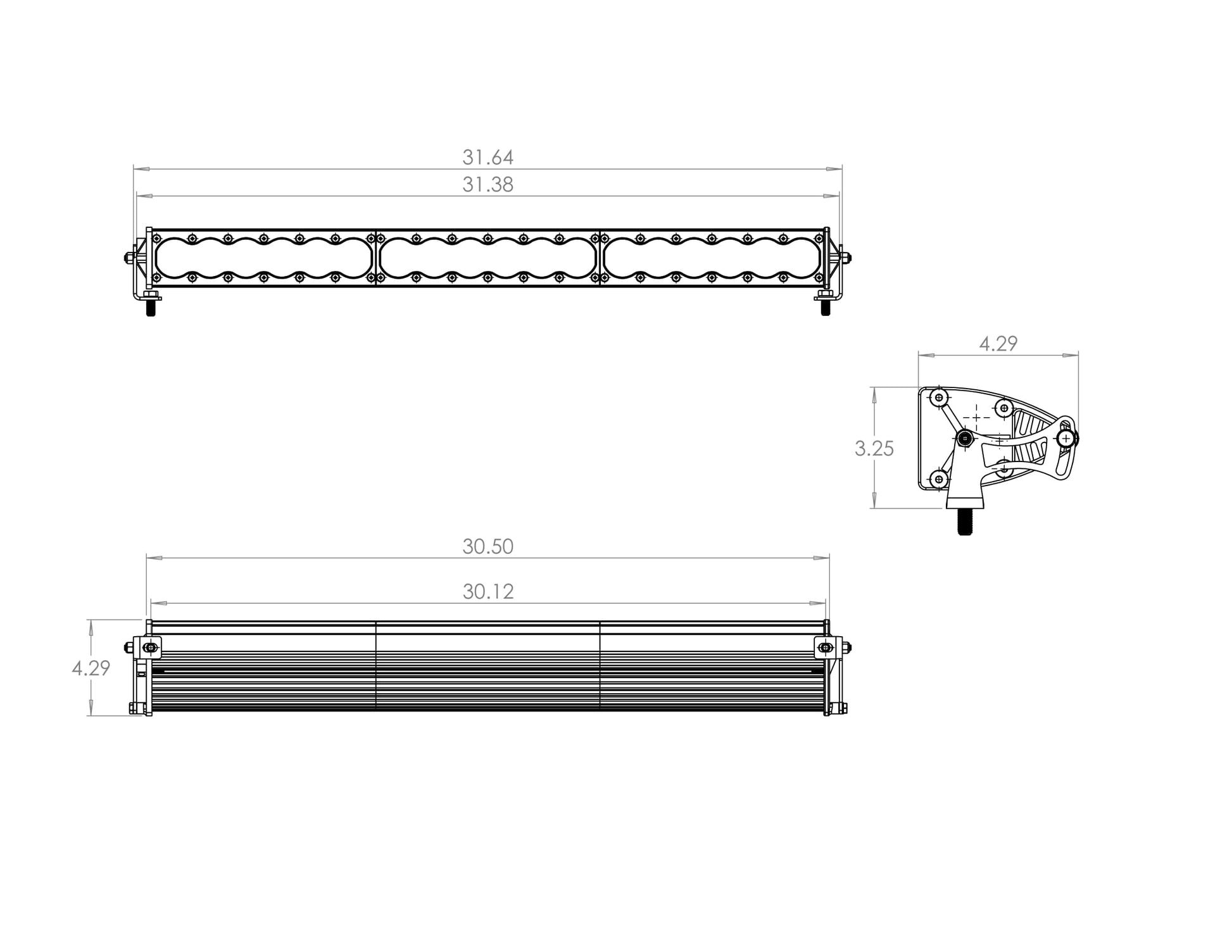

  • Baja Designs 30" OnX6+ LED Light Bar Diagram of Measurements
  • 30" OnX6+ LED Light Bar Lighting Baja Designs Spot Display

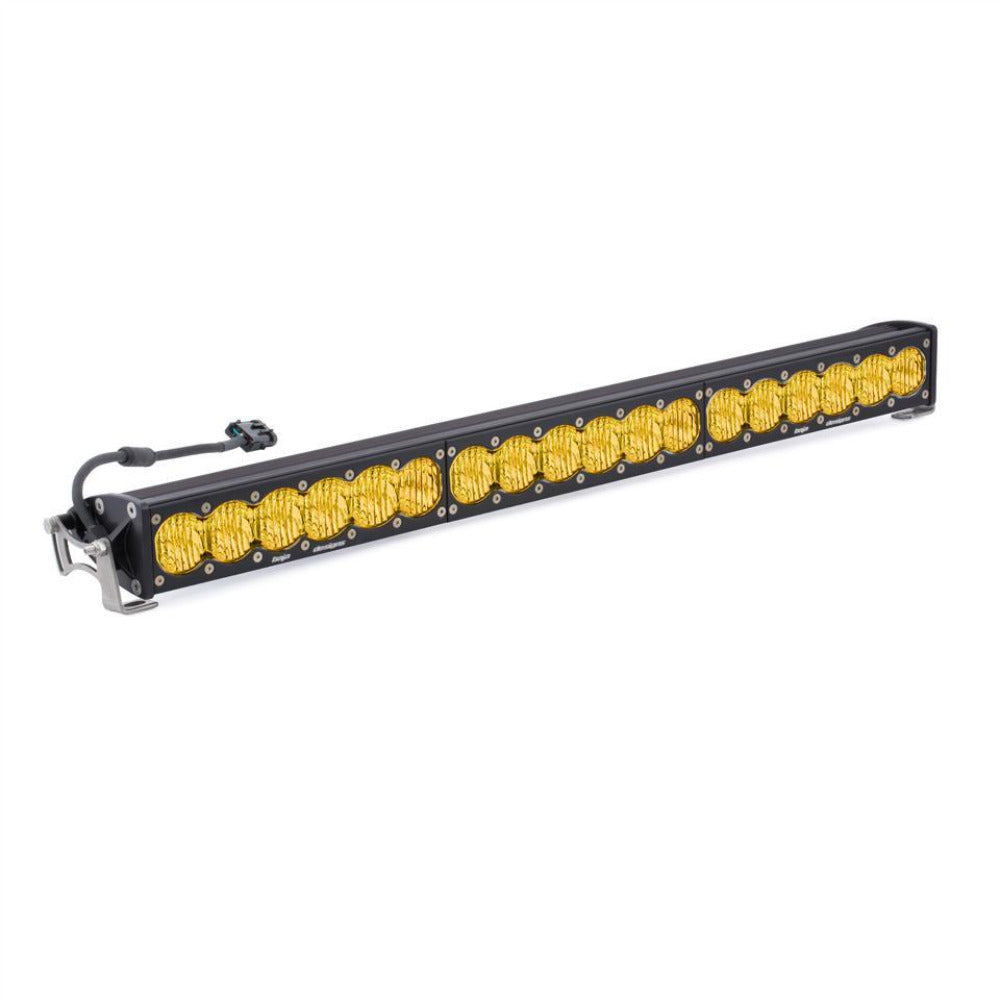

  • 30" OnX6+ LED Light Bar Lighting Baja Designs AMBER Wide Driving Display
  • Baja Designs 30" OnX6+ LED Light Bar Amber Wide Driving Display
Beam Pattern
$1,132.95
$1,132.95
FURTHEST PROJECTING LIGHT ON THE PLANET:

At an impressive 31,910 lumens, the brightest just got up to 69% brighter. The OnX6+ LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.

In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems.

WHAT'S INCLUDED:
  • OnX6+ 30” LED Light Bar
  • Mounting Brackets
  • Hi-Low Dongle
BATTERY MANAGEMENT TECHNOLOGY:
  • Elimination Of Flickering at Low Voltage
  • Added Protection to Vehicle Wiring and Systems
  • Protection from Dangerous Current Spikes
SPECS:
  • Lumens: (High) 31,910 (Low) 25,450 Utilizing 18 Cree LEDs
  • Wattage/Amps: (High) 281W / 21.7A (Low) 225W / 17.1A
  • Dimensions: 30" x 4.29" x 2.69"
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft & Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)
