THE TURN KEY SOLUTION:

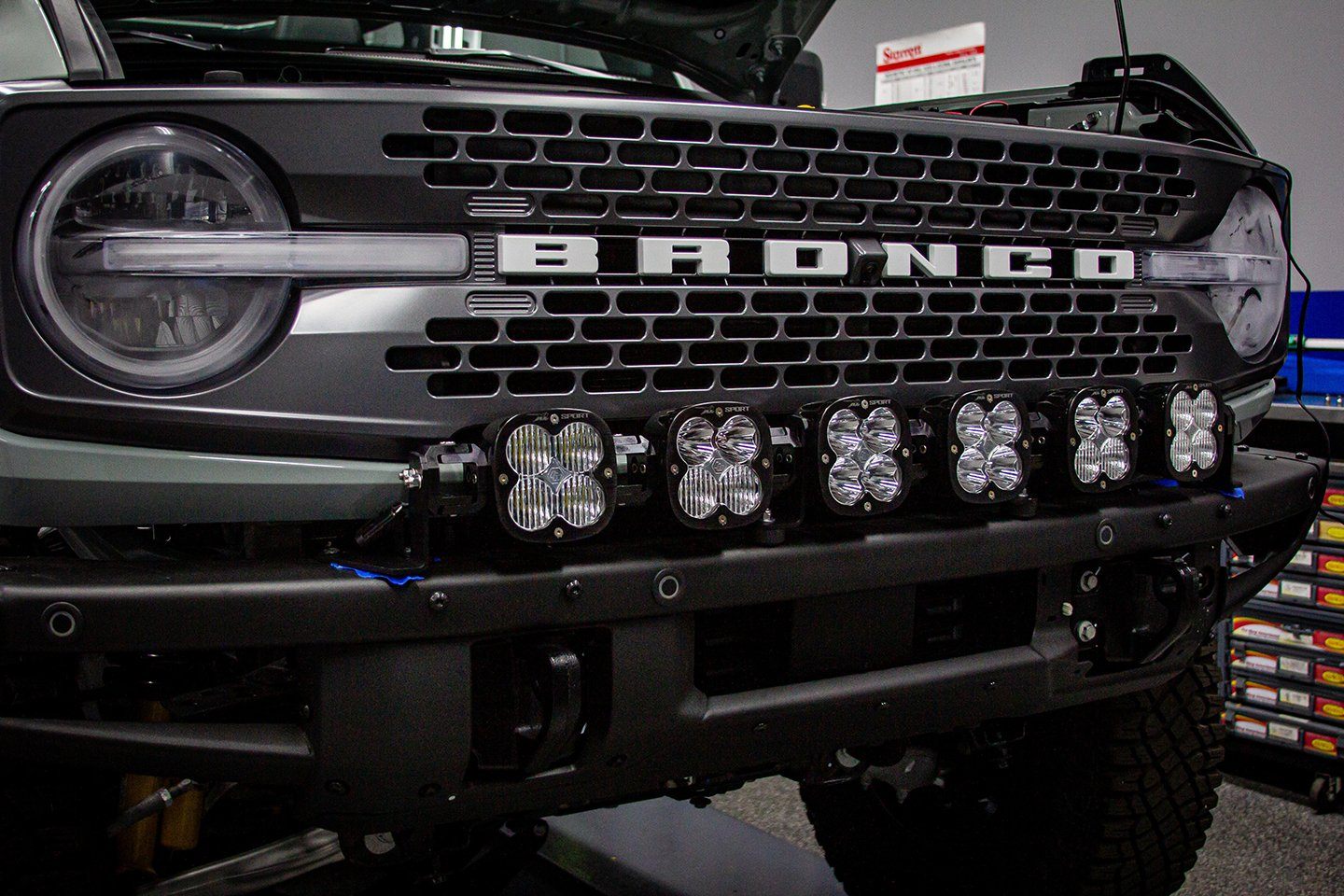

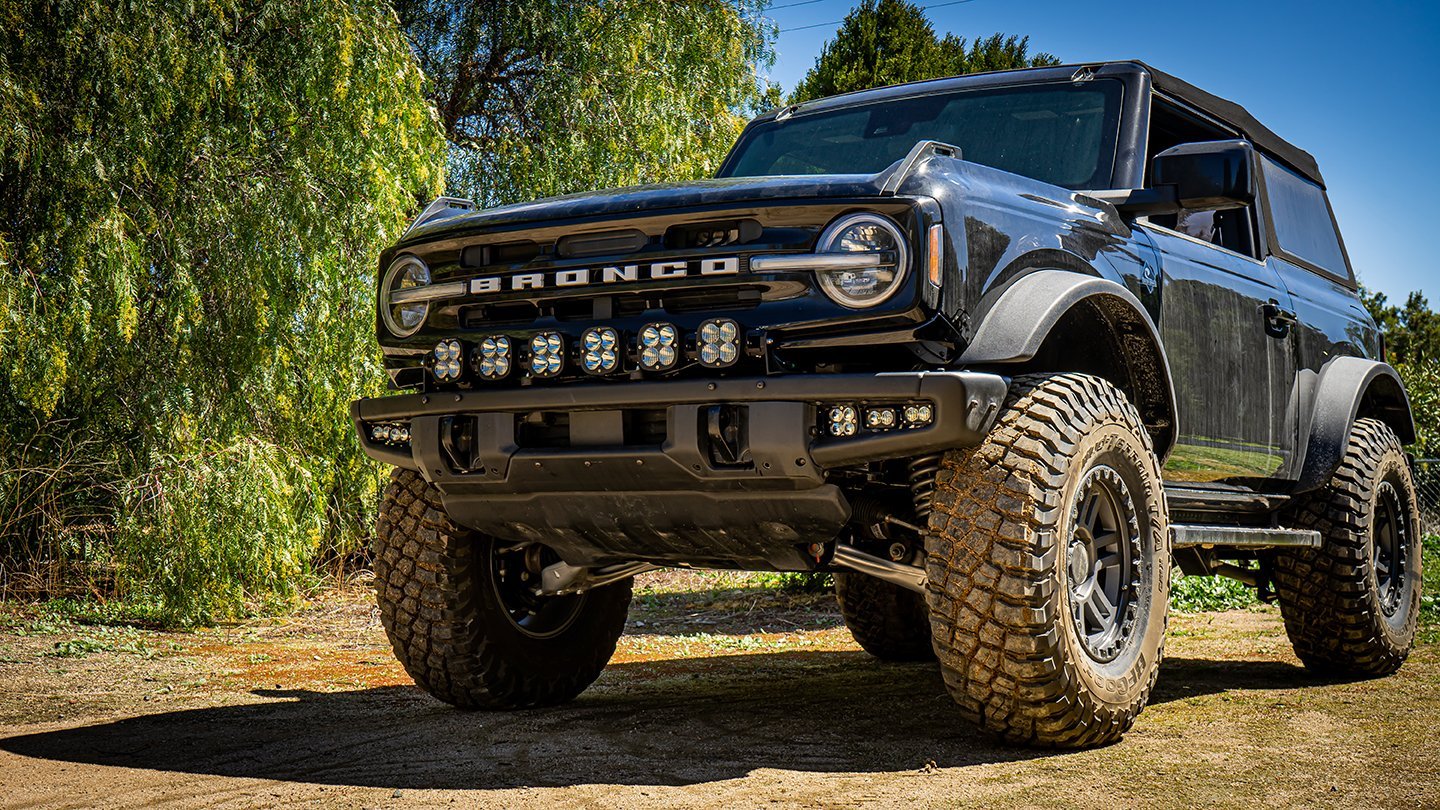

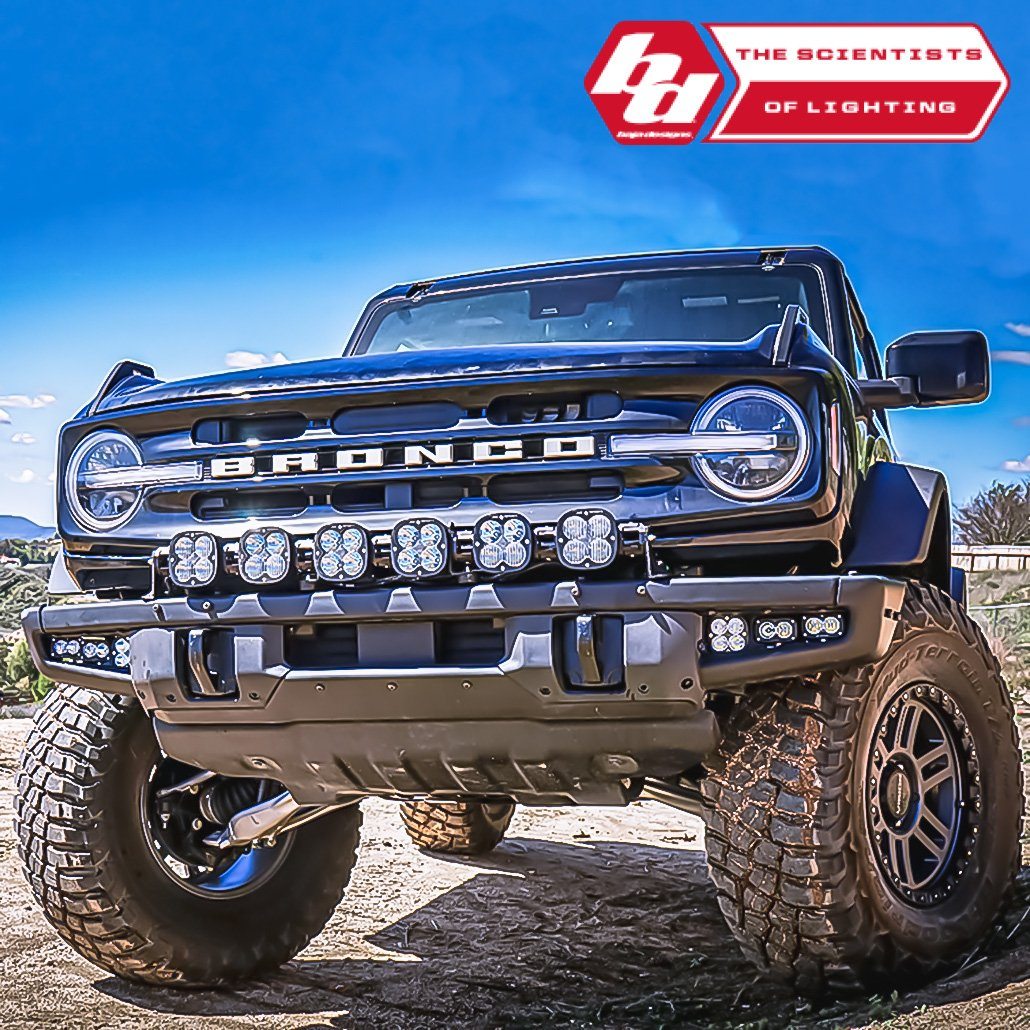

Baja Designs' XL Linkable Kit for the bumper of the 2021-2024 Ford Bronco includes 6 XL Sports, Links, mounting brackets specific to the Bronco, upfitter or toggle switch style wiring harness and rock guards. This kit is a turn key aftermarket LED system for the Ford Bronco owner that is looking to drastically improve the looks and performance of their Ford Bronco.
VEHICLE FITMENT:
- 2021-2024 Ford Bronco with plastic or steel bumper (see product options)
-
TECH NOTE: This lightbar kit may interfere with a portion of the viewing window in front facing camera equipped vehicles.
SPECS:
-
Lumens: 18,900 Utilizing 24 LEDs
-
Wattage/Amps: 156w / 12A
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)

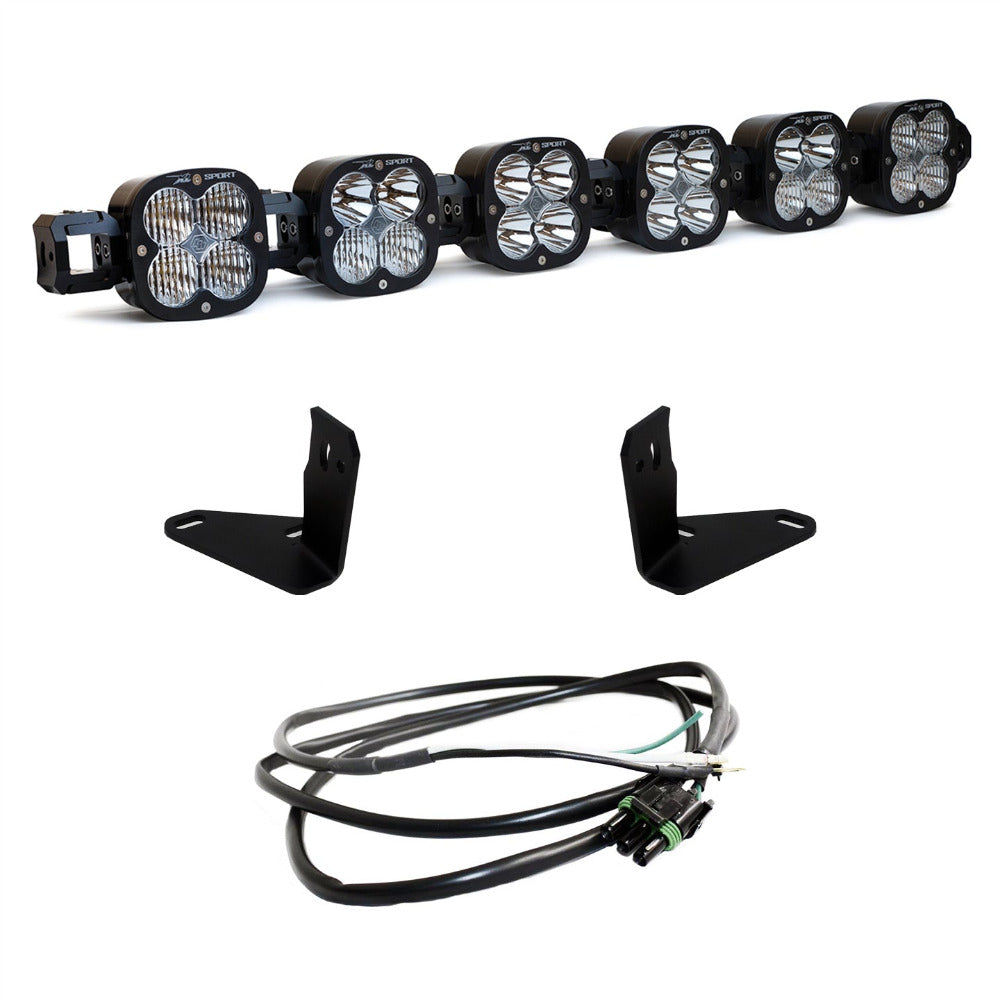

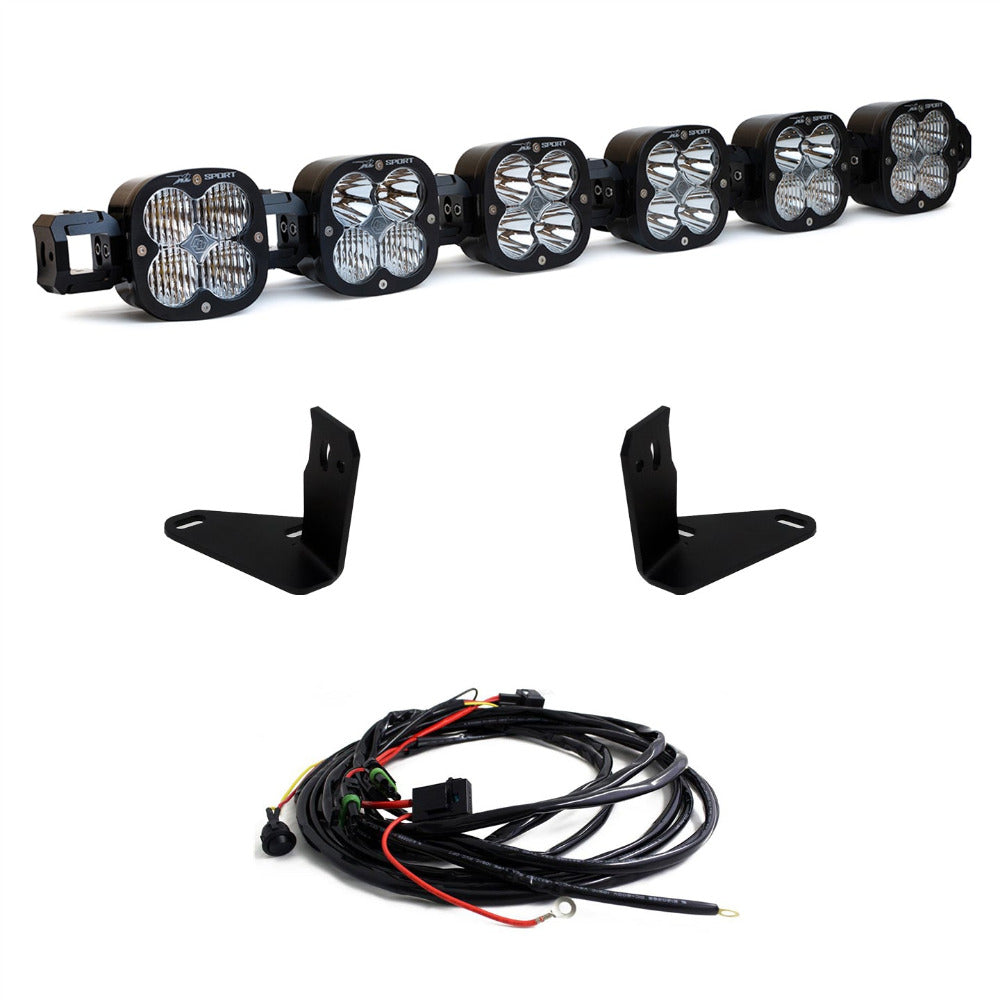

WHAT'S INCLUDED:
- x2 XL Sport Spot LED Light
- x2 XL Sport Driving/Combo LED Light
- x2 XL Sport Wide Cornering LED Light
- x6 XL Sport Rock Guards
- Bronco Mounting Brackets
- Harness with Toggle Switch or Upfitter (see product options)
PRODUCT OPTIONS:
| Part# |
Bumper Configuration |
Wiring Style |
447768
|
Plastic Bumper |
Toggle Switch |
|
447768UP
|
Plastic Bumper |
Upfitter |
|
447750
|
Steel Bumper |
Toggle Switch |
|
447750UP
|
Steel Bumper |
Upfitter |
|
WIRING OPTIONS:
In the product options you can select what style of wiring option you want either toggle switch or upfitter
-
TOGGLE SWITCH/NON-UPFITTER OPTION: The included wiring harness is a rocker switch style that can be activated inside the cab of the vehicle.
-
UPFITTER OPTION: The included wiring harness is an upfitter style designed to be tied into either your vehicles factor upfitter system or a Switch-Pros unit.
BAJA DESIGNS BEAM PATTERNS:
-
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
-
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
-
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
