THE ULTIMATE ROOF LIGHT KIT:
Baja Designs carefully designed to be the ultimate roof mounted light bar kit for 2021-Current Ford Bronco. The 50” OnX6+ combines far reaching, high speed spot reflectors with the Baja Designs Driving Combo lens for a smooth yet intense pattern that will light up the whole trail.
This kit includes a 50” OnX6+ LED Light Bar, vehicle specific mounting brackets, hardware, and upfitter or toggle wiring harness to make installation a breeze. No cutting, trimming, or drilling is required and all wiring is pre-sized for your Ford Bronco.
VEHICLE FITMENT:
2021-2024 Ford Bronco
SPECS:
-
Lumens: 39,430 Utilizing 32 LEDs
-
Wattage/Amps: 355w / 28.2A
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
- This bar is equipped with BMT – Battery Management Technology
- Elimination Of Flickering at Low Voltage
- Added Protection to Vehicle Wiring and Systems
- Protection from Dangerous Current Spikes

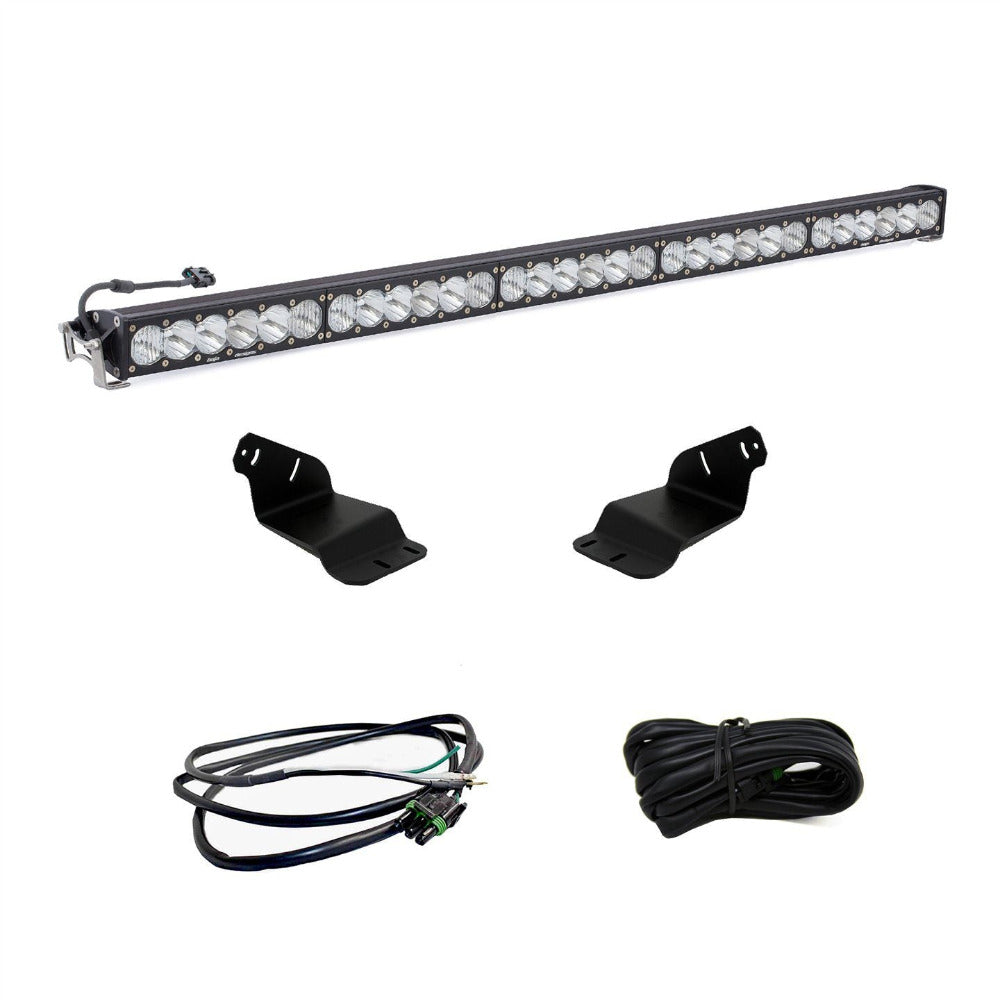

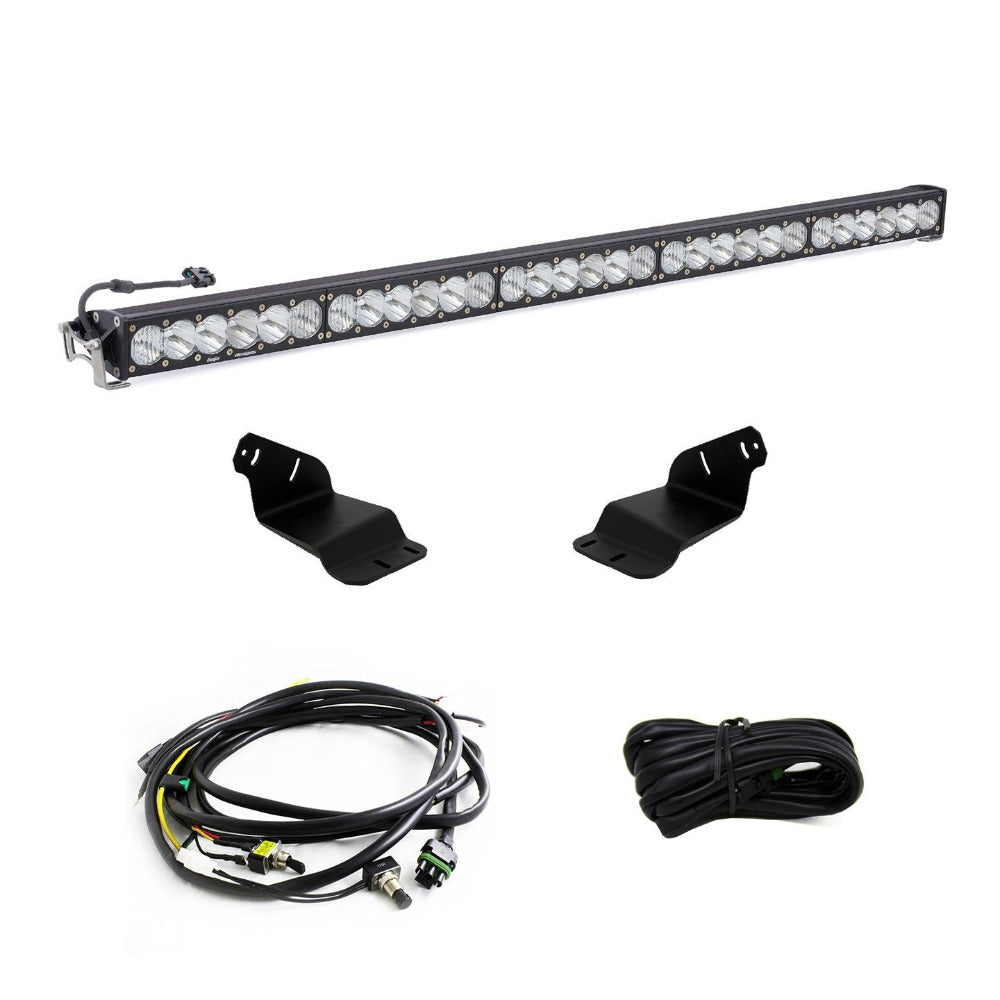

WHAT'S INCLUDED:
- OnX6+ 50” LED Light Bar (Driving/Combo lens)
- Bronco Mounting Brackets
- Harness with Toggle Switch or Upfitter (see product options)
WIRING OPTIONS:
In the product options you can select what style of wiring option you want either toggle switch or upfitter
-
TOGGLE SWITCH/NON-UPFITTER OPTION: The included wiring harness is a rocker switch style that can be activated inside the cab of the vehicle.
-
UPFITTER OPTION: The included wiring harness is an upfitter style designed to be tied into either your vehicles factor upfitter system or a Switch-Pros unit.
| Part# |
Wiring Style |
447757
|
Toggle Switch |
|
447757UP
|
Upfitter
|
|
BEAM PATTERN OVERVIEW:
-
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance.
