DUAL FOG LIGHT KIT:

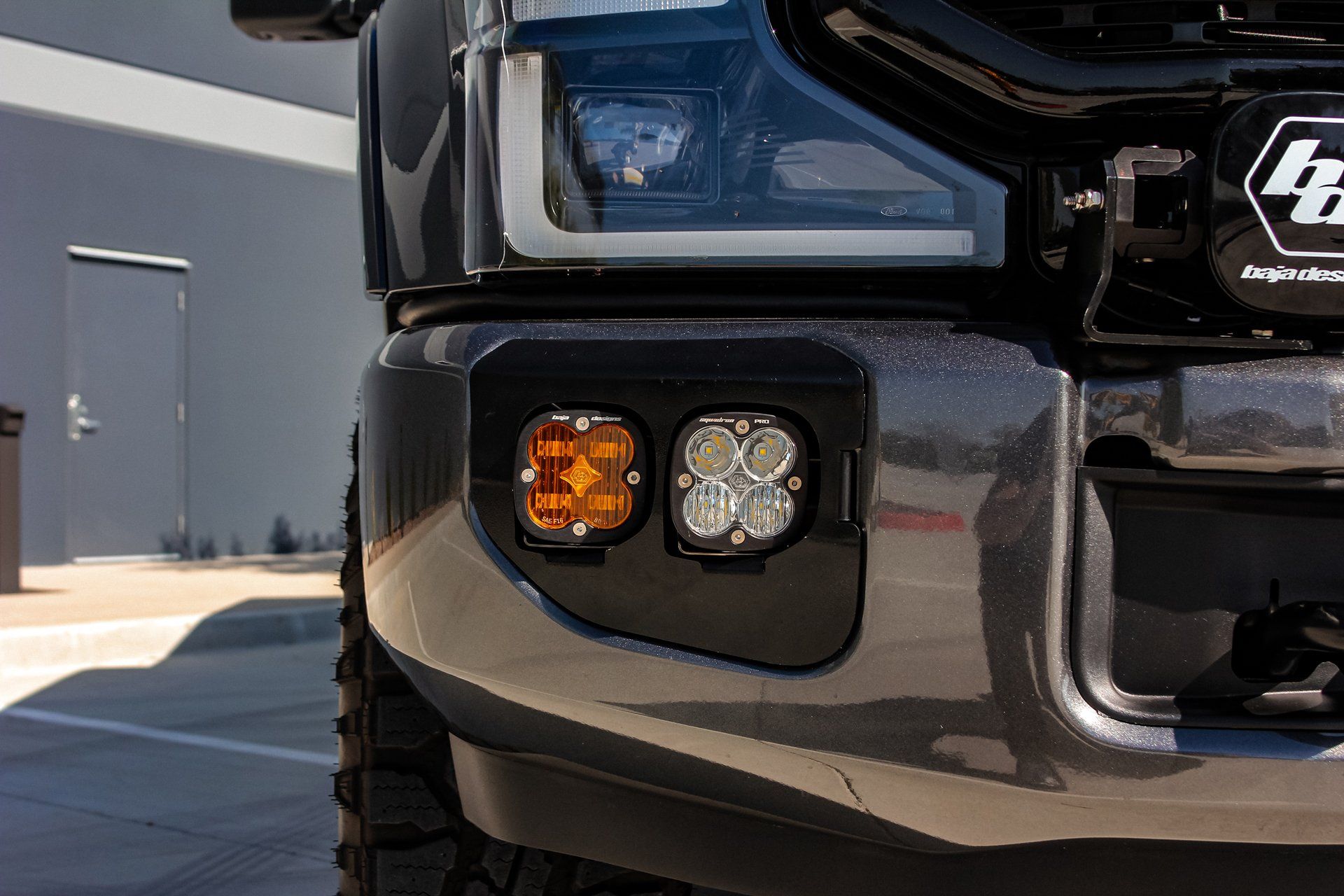

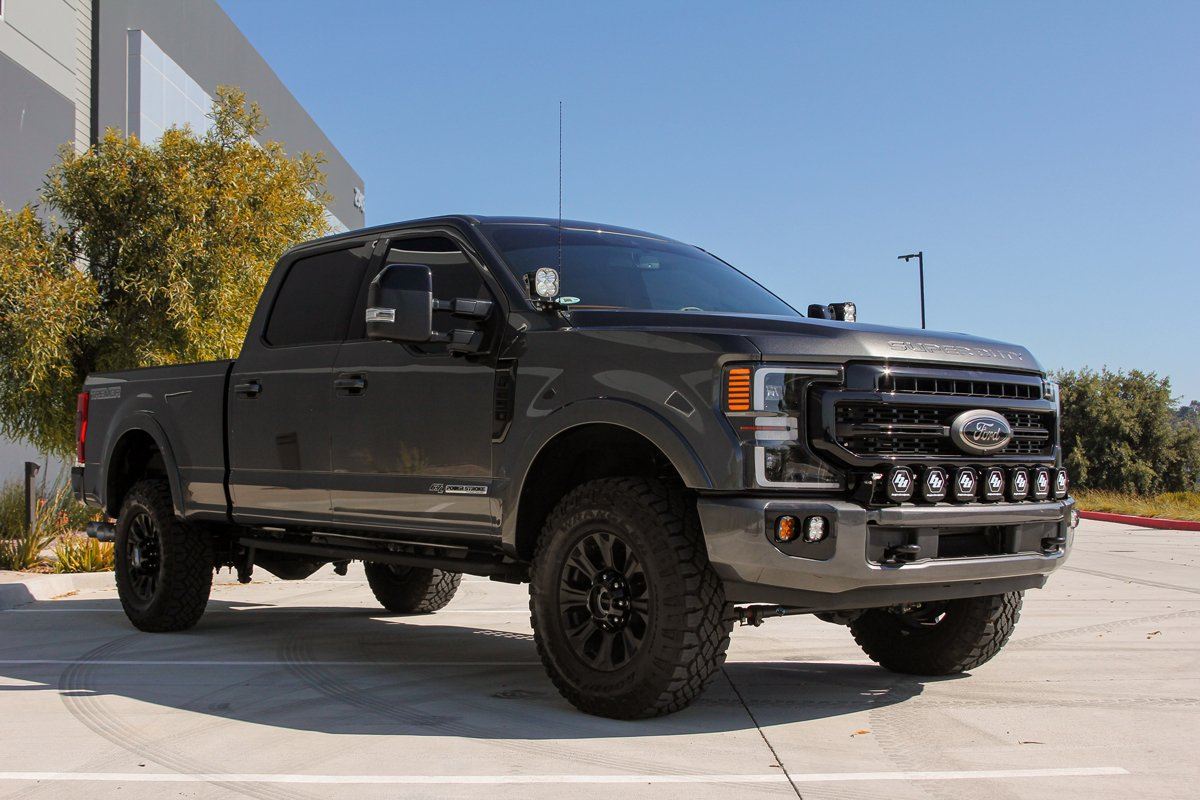

Baja Design's Squadron Sport/SAE Dual Fog Light Kit for the 2020-2022 Ford F250/350 (Superduty) is the perfect mix of high-quality on and off-road lighting. This kit is utilizing Baja Designs SAE compliant fog lights on the outside, controlled by the factory fog switch, and a pair of amber driving/combo lights inside, operated by a secondary harness or your upfitter system.
FITMENT:
2020-2022 Ford F250/F350 (Superduty)
SPECS:
Squadron Sport Specs (Per Light):
- Lumens: 3,150 Utilizing 4 LEDs
- Wattage/Amps: 26W / 2A
- Dimensions: 3.07" x 2.77" x 3.07"
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Squadron SAE Specs (Per Light):
- Lumens: 2,480 Utilizing 4 LEDs
- Wattage/Amps:22W / 1.6A
- Dimensions:3.07" x 2.77" x 3.07"
- LED Life Expectancy:49,930 Hours
- Front Lens:Hard Coated Polycarbonate
- Housing:Powder Coated Cast Aluminum
- Bezel:Billet Machined Aluminum
- Hardware & Bracket Material:Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)

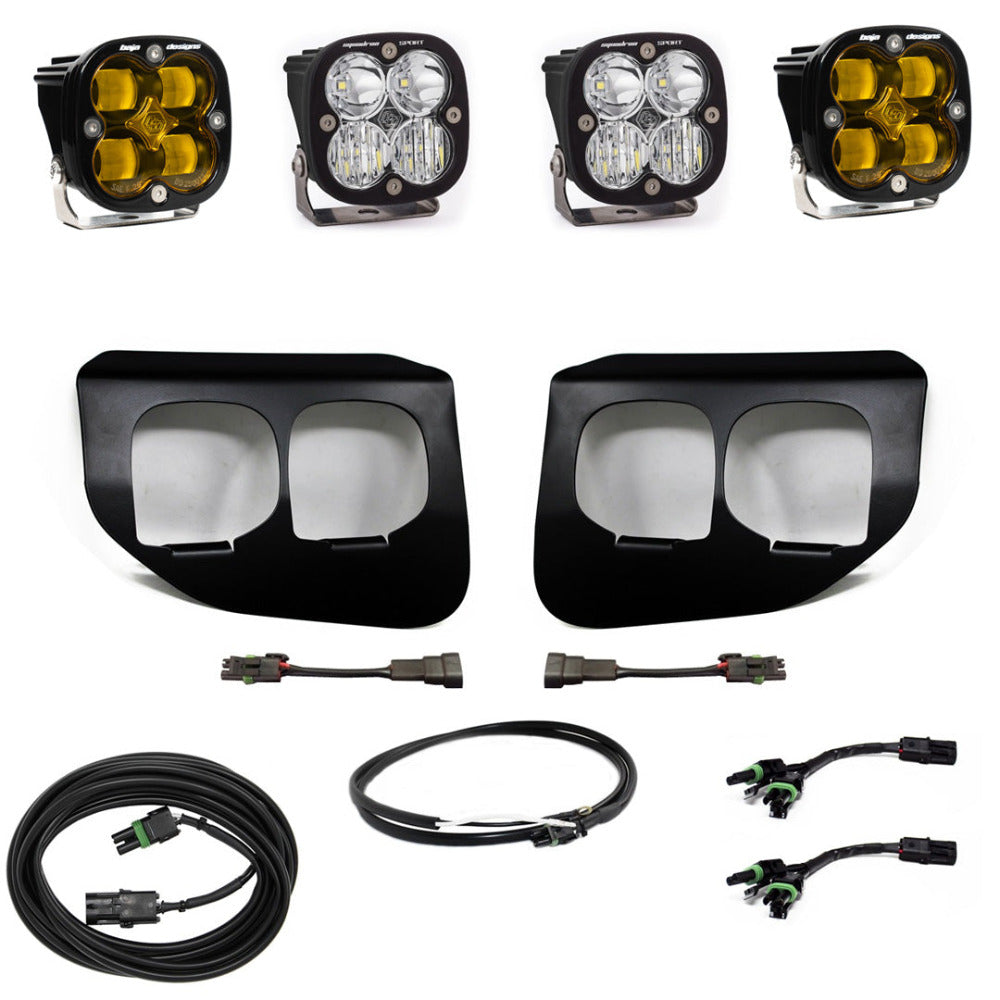

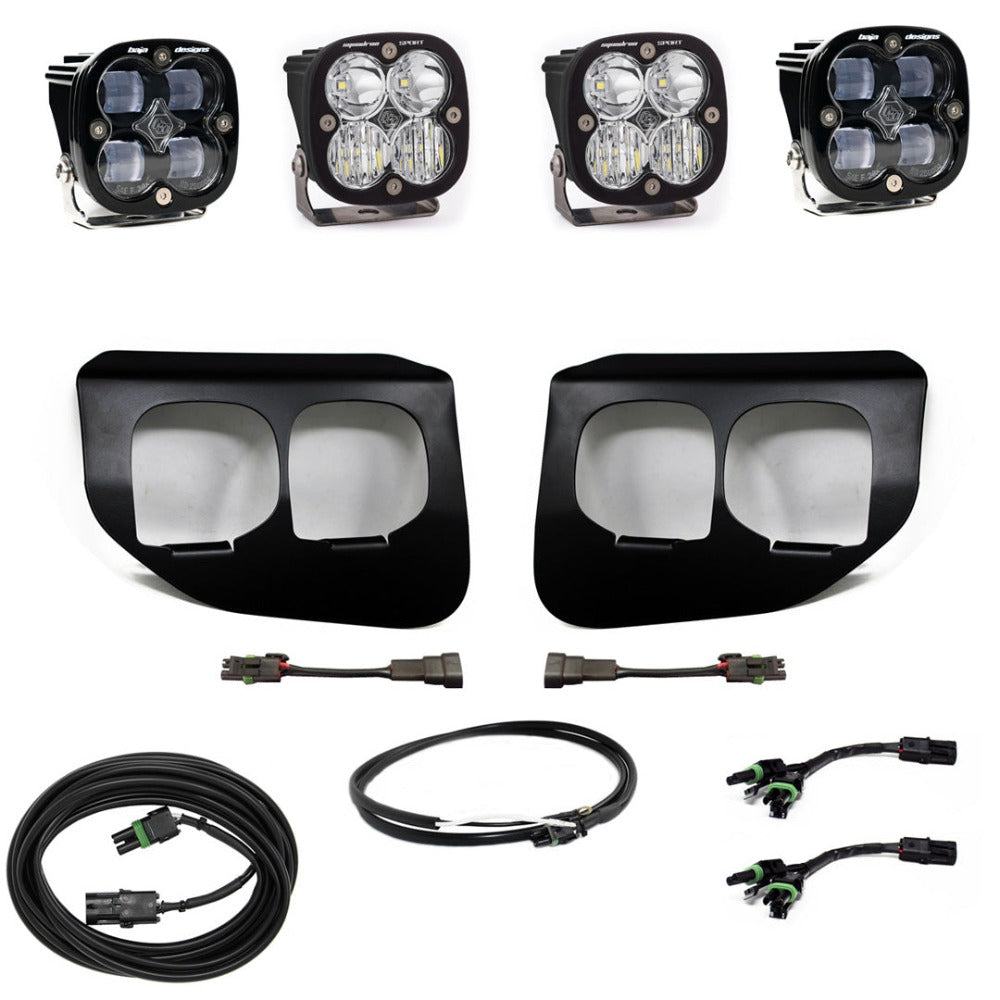

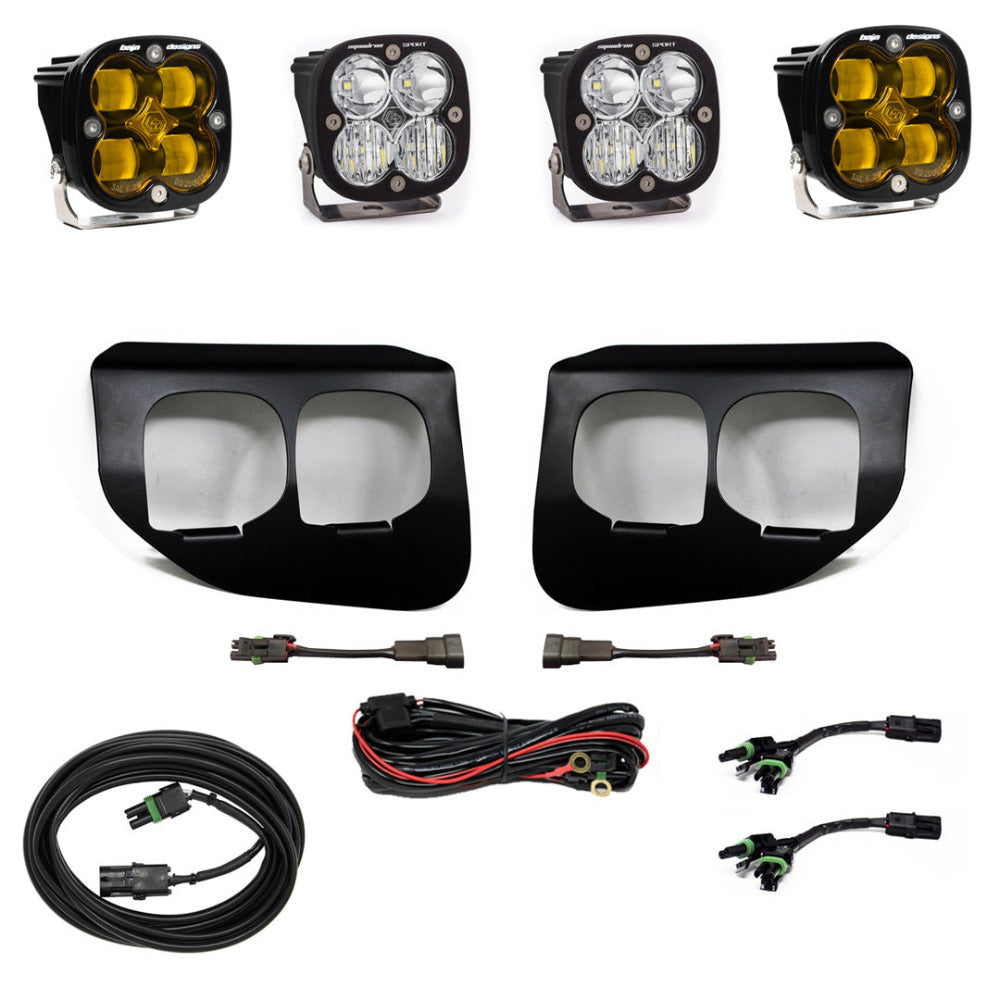

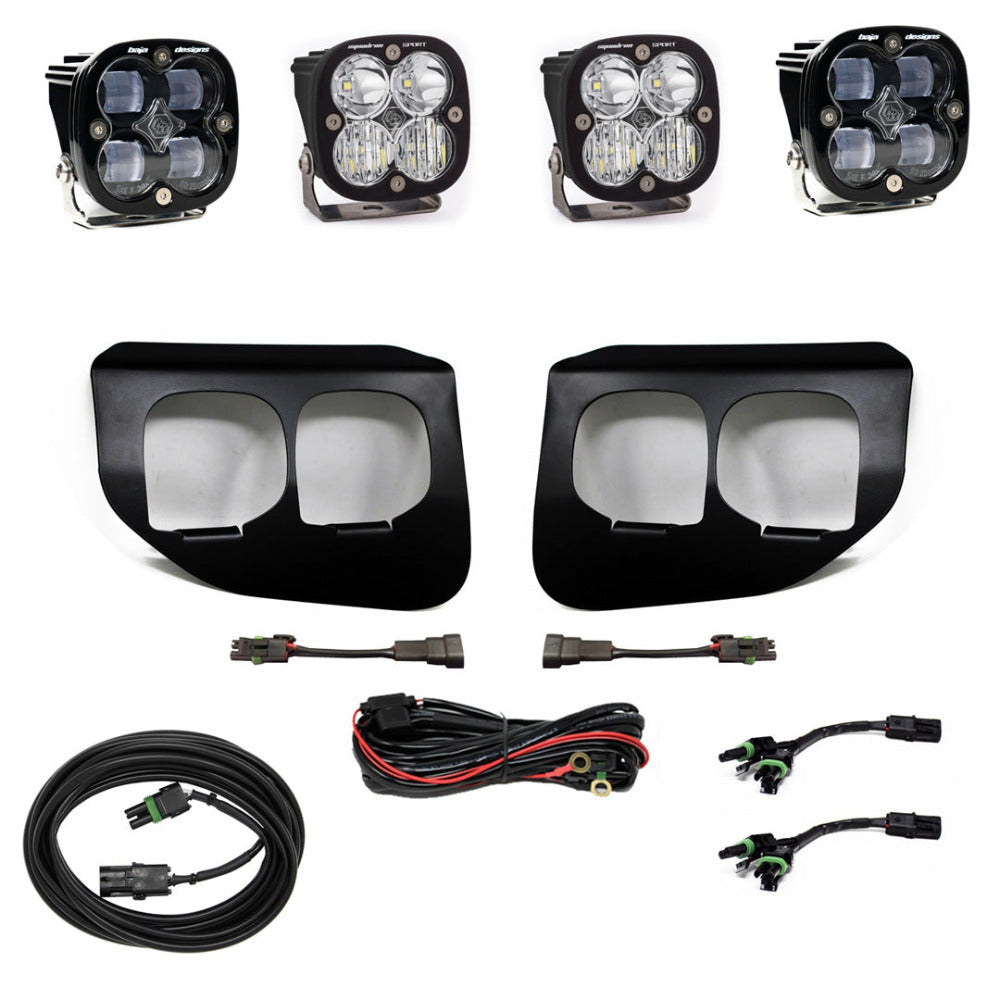

WHAT'S INCLUDED:
- (2) Squadron® SAE LED Lights (Optional Amber or White Lenses)
- (2) Squadron® Sport LED lights
- Mounting Brackets
- Plug and Play Harness
- Wiring Harness
WIRING OPTIONS:
In the product options you can select what style of wiring option you want either NON-UPFITTER or UP-FITTER
-
TOGGLE SWITCH/NON-UPFITTER OPTION: The included wiring harness is a rocker switch style that can be activated inside the cab of the vehicle.
-
UPFITTER OPTION: The included wiring harness is an upfitter style designed to be tied into either your vehicles factor upfitter system or a Switch-Pros unit.
