ENHANCE YOUR TRAIL EXPERIENCE:

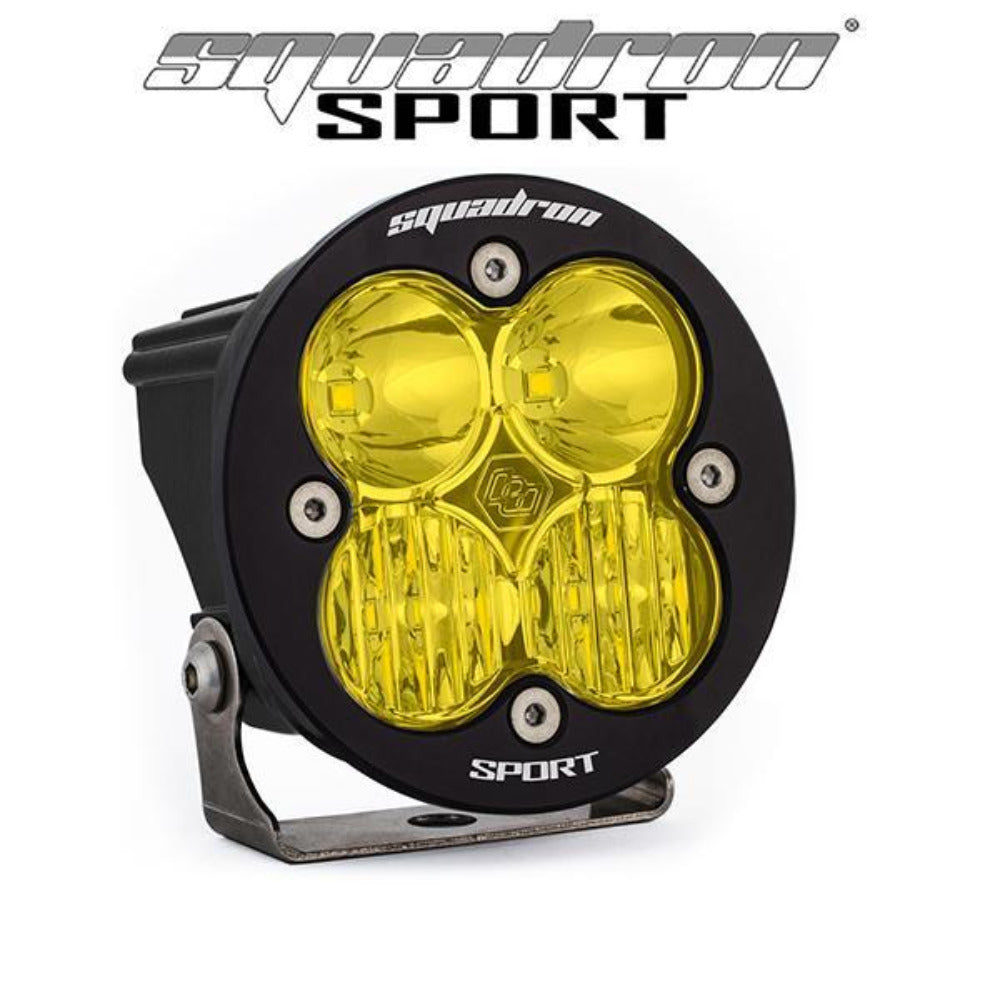

Similar to the Squadron Sport, the Squadron-R Sport off-road lights produce 3,150 lumens of pure power to light up the trail on your nighttime off-roading excursions! The Squadron-R Sport has been designed for customers looking for LED performance with more traditional styling. The Squadron-R Sport has also been optimized for aftermarket bumpers featuring a 4” round hole. Enjoy nearly 50,000 hours of optimal performance out of this small, but high-performing auxiliary LED light.
WHAT'S INCLUDED:
- Squadron® Sport LED Light
- Mounting Bracket
SPECS:
-
Lumens: 3,150 Utilizing 4 LEDs
-
Wattage/Amps: 26W / 2A
-
Dimensions: 3.5" x 2.77" x 3.5"
-
LED Life Expectancy: 49,930 Hours
-
Front Lens: Hard Coated Polycarbonate
-
Housing: Powder Coated Cast Aluminum
-
Bezel: Billet Machined Aluminum
-
Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
BEAM PATTERNS:
-
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance
-

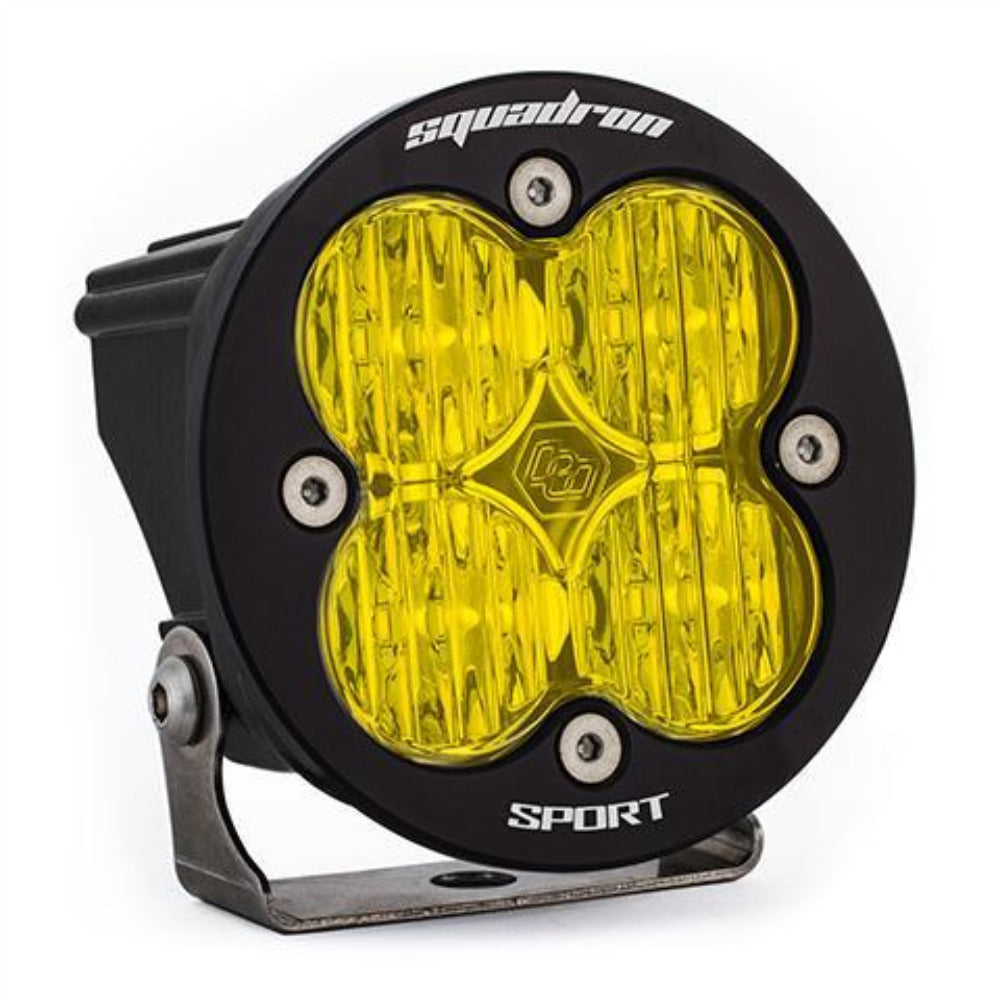

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting.
-
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
-
Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
