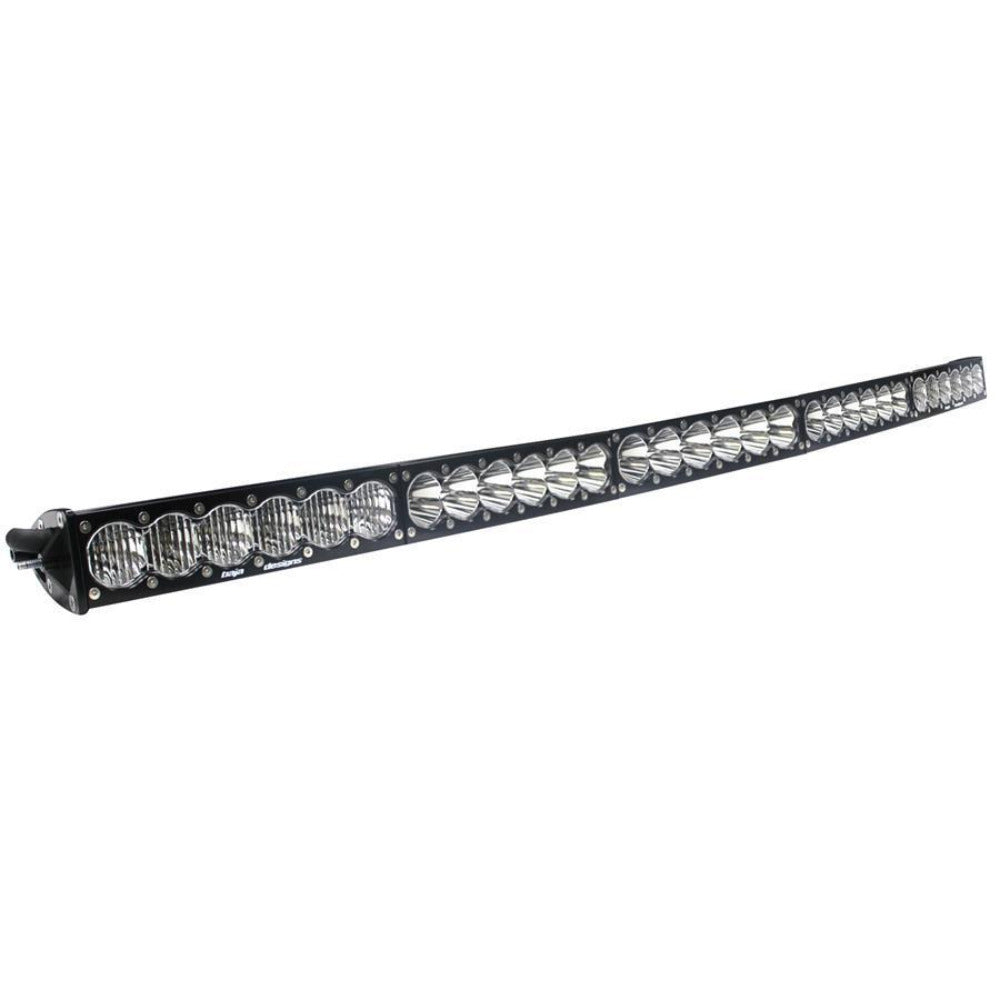

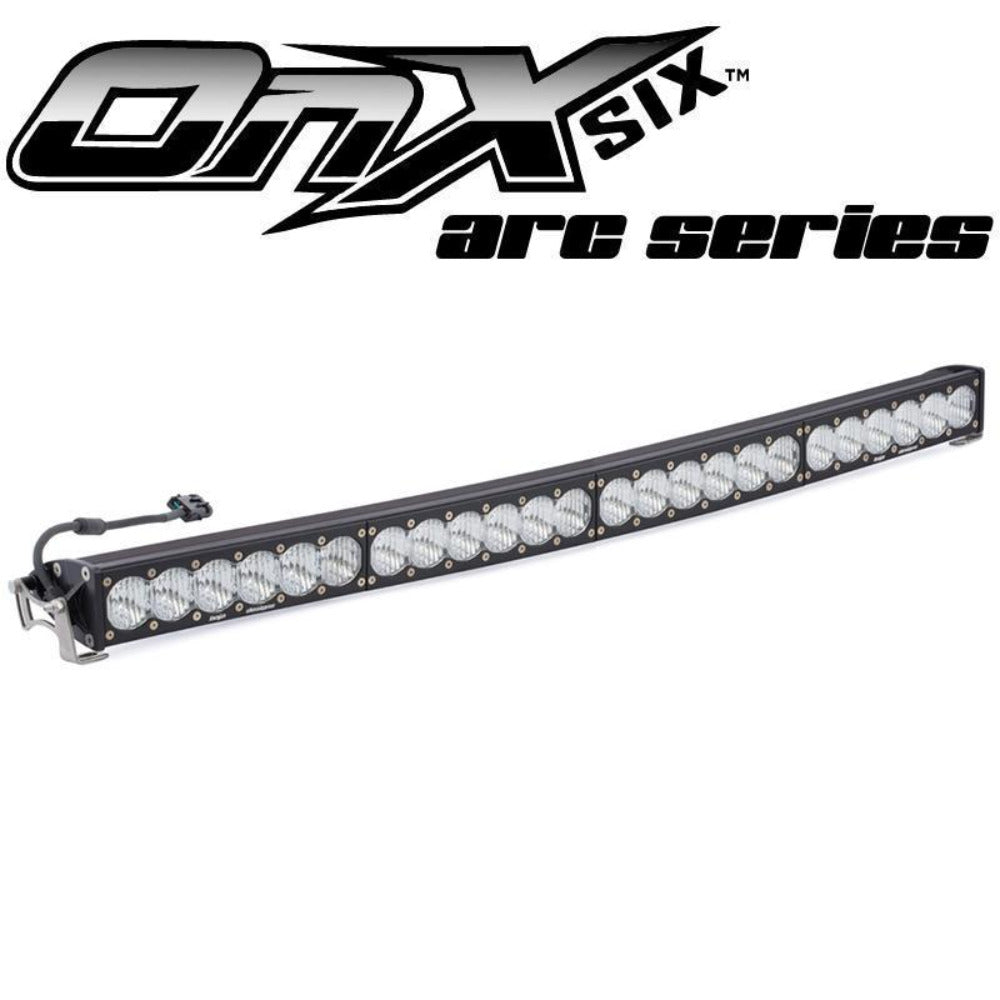

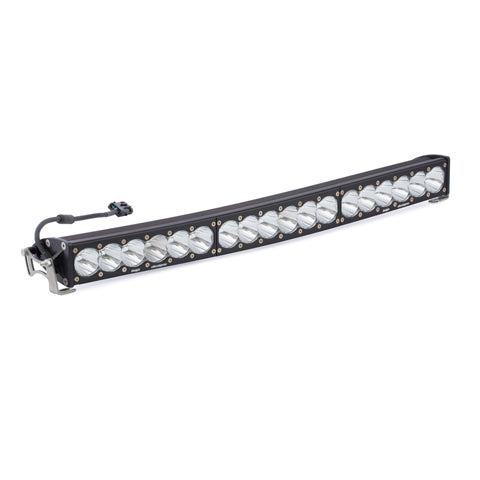

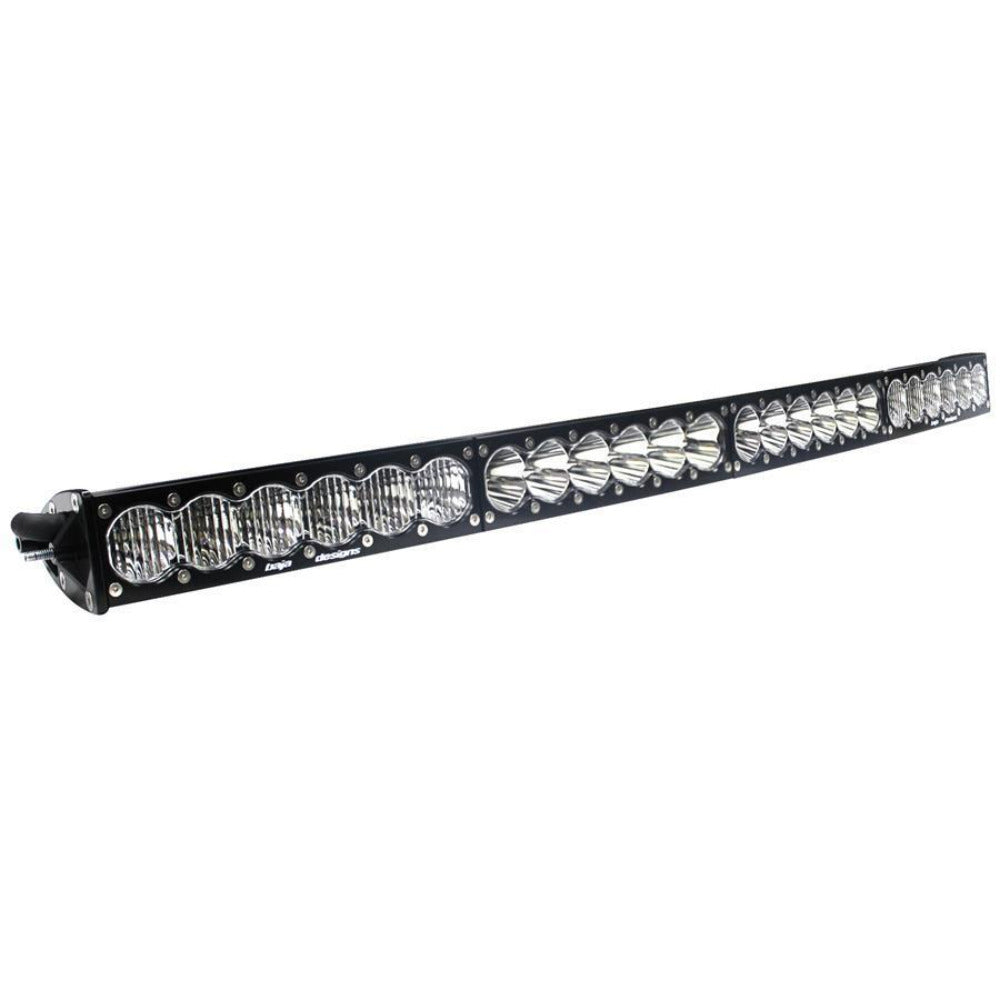

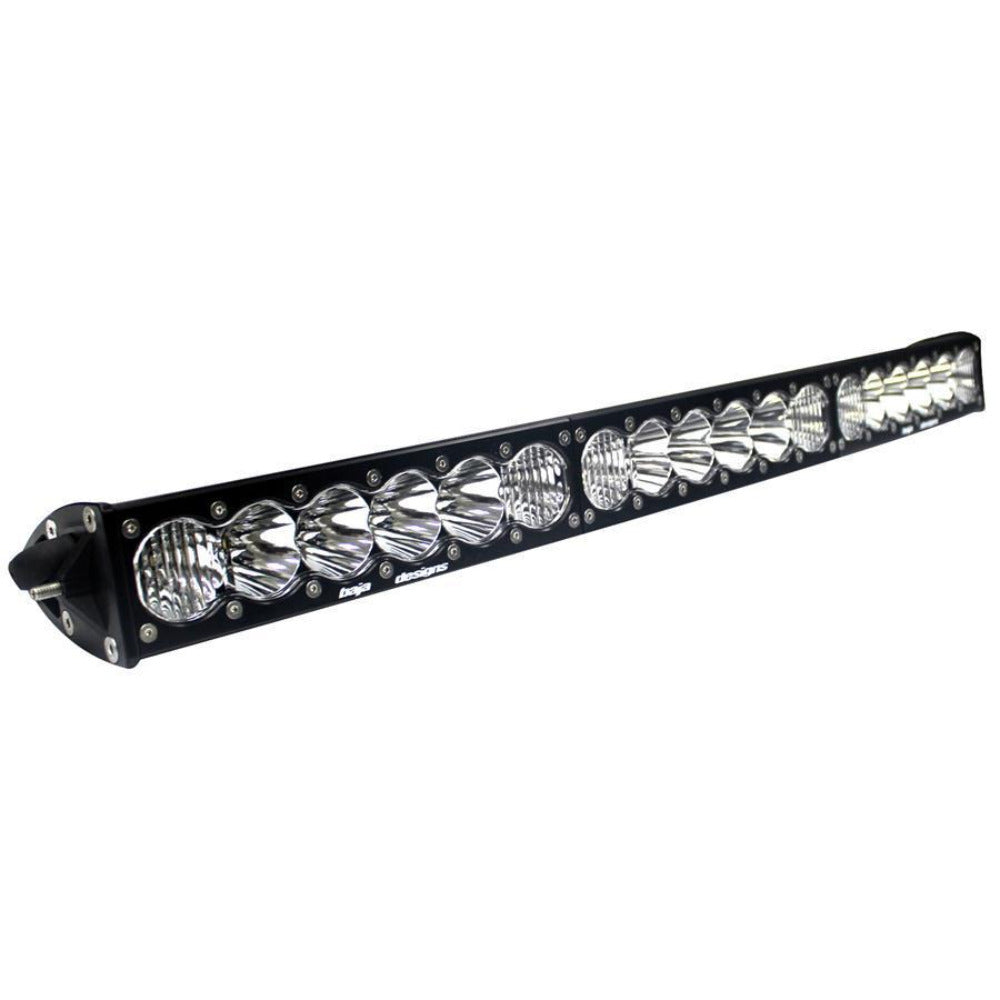

THE PERFECT MIX OF AESTHETICS AND PERFORMANCE:
The OnX6+ Arc Series is the perfect combination of performance and aesthetics. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar. At an impressive 39,220 lumens, the brightest just got up to 69% brighter. The OnX6+ LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.
WHAT'S INCLUDED:
- OnX6+ Arc 40-50” LED Light Bar
- Mounting Brackets
SPECS:
| Bar Length (in.) |
Lumens |
Wattage/Amps |
| 40" |
(High) 39,220 (Low) 32,760 Utilizing 18 Cree LEDs |
(High) 340W / 26.8A (Low) 284W / 22.4A |
| 50" |
39,910 |
346W / 28.2A |
-
LED Life Expectancy: 49,930 Hours
-
Front Lens: Hard Coated Polycarbonate
-
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
-
Bezel: Billet Machined Aluminum
-
Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
TECH NOTES:
- Please note that this light does NOT include a harness and the applicable harness to this light is 640119
BEAM PATTERNS:
-
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance.
-
Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting.
-
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
